M270QAN06.0

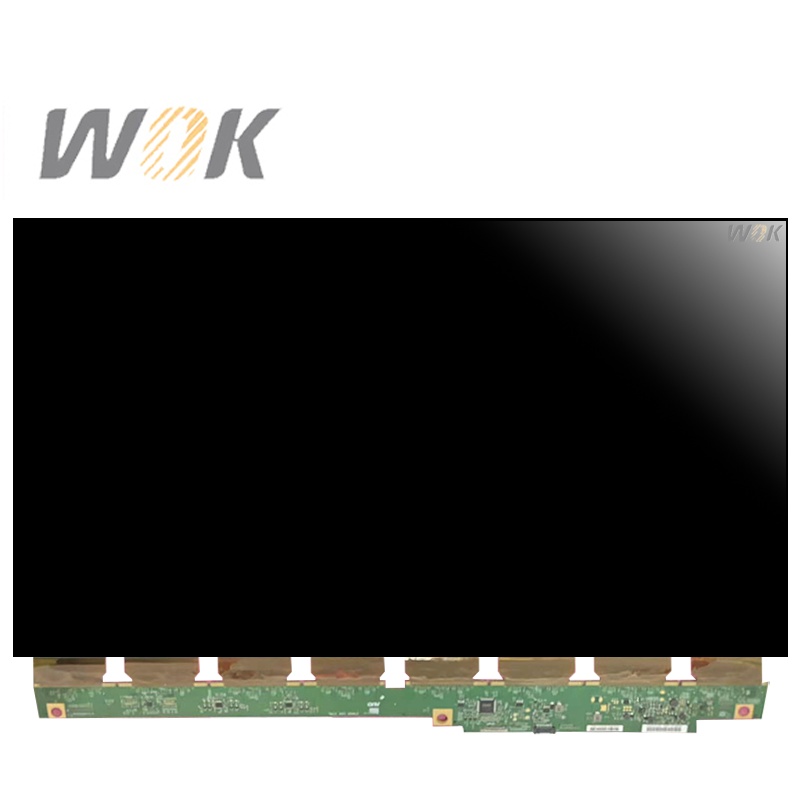

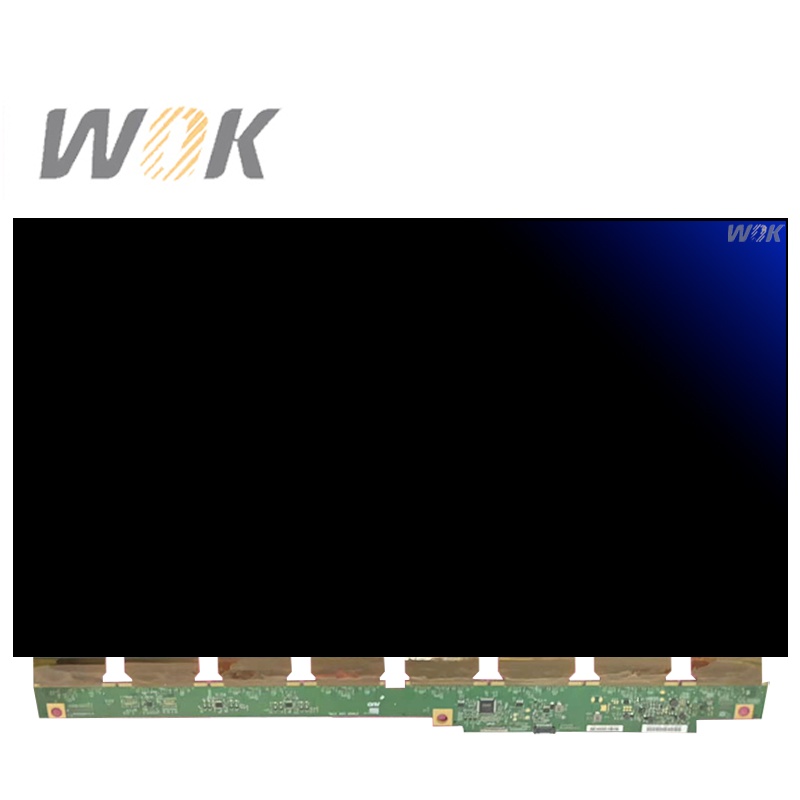

AUO M270QAN06.0 CELL 27Inch 60Hz LCD Display Panel

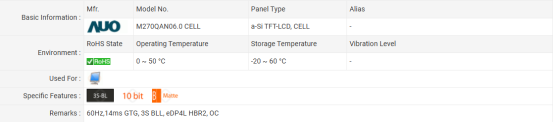

AUO M270QAN06.0 CELL Application Features

AUO M270QAN06.0 CELL Optical Features

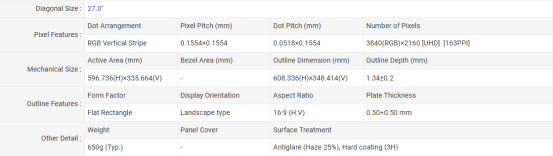

AUO M270QAN06.0 CELL Mechanical Features

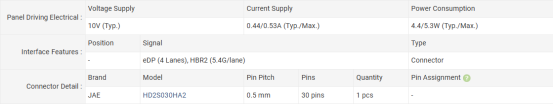

AUO M270QAN06.0 CELL Electronics Features

AUO M270QAN06.0 CELL Backlight Features

AUO M270QAN06.0 CELL Interface Features

AUO M270QAN06.0 CELL Packing Features

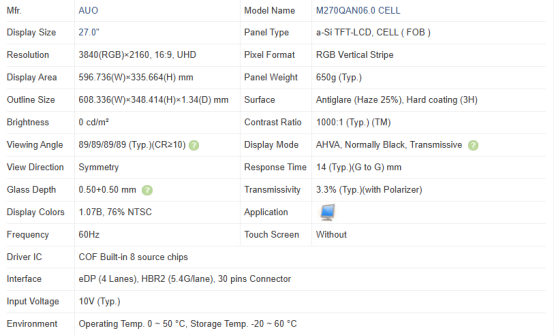

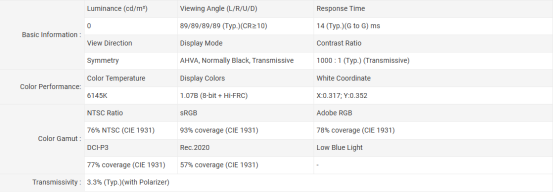

M270QAN06.0 CELL supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.336(W)×348.414(H)×1.34(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 650g (Typ.), utilizing 0.50+0.50 mm mm plate. As a AHVA, Normally Black, Transmissive CELL product, M270QAN06.0 CELL can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 76% (NTSC). This product have no backlight, external backlight driver is additionally needed. M270QAN06.0 CELL utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
