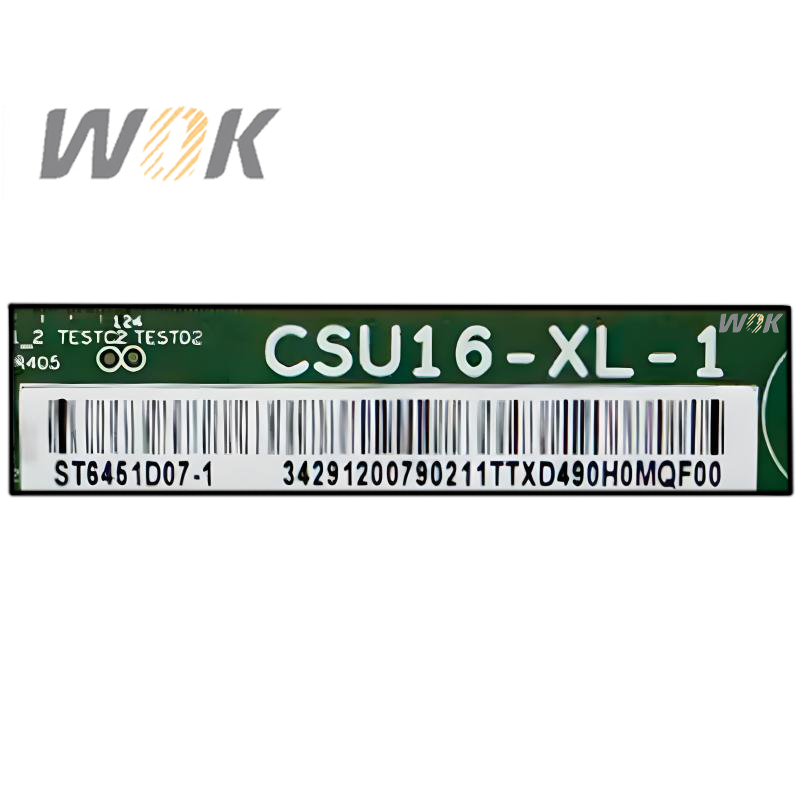

ST6451D07-1

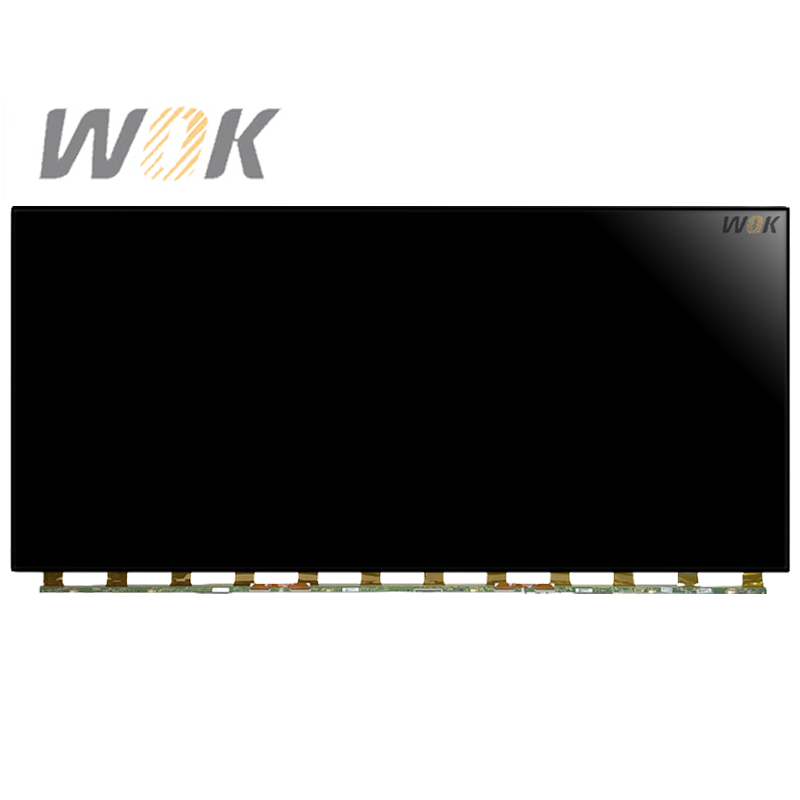

LCD Panel Replacement ST6451D07-1 120Hz 65Inch

CSOT ST6451D07-1 Application Features

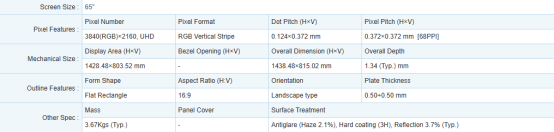

CSOT ST6451D07-1 Mechanical Features

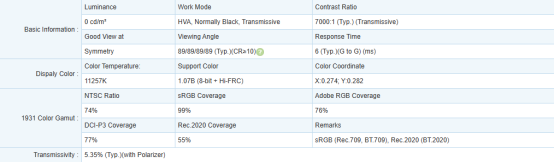

CSOT ST6451D07-1 Optical Features

CSOT ST6451D07-1 Electronics Features

CSOT ST6451D07-1 Backlight Features

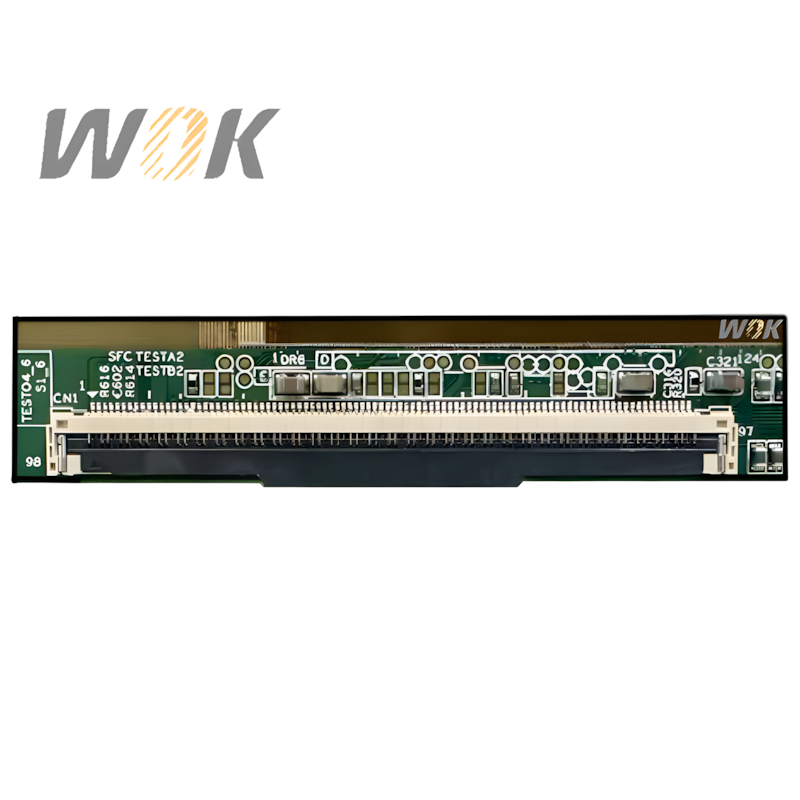

CSOT ST6451D07-1 Interface Features

CSOT ST6451D07-1 Packing Features

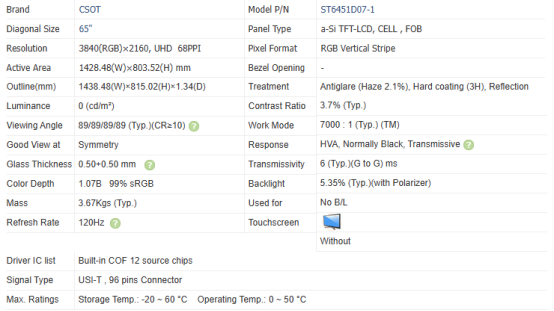

ST6451D07-1 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1438.48(W)×815.02(H)×1.34(D) mm, with surface treament of Antiglare (Haze 2.1%), Hard coating (3H), Reflection 3.7% (Typ.), net weight of 3.67Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a HVA, Normally Black, Transmissive CELL product, ST6451D07-1 can provides 7000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (sRGB). This product have no backlight. ST6451D07-1 utilizes USI-T as it's signal inputting systerm, which connected by 96 pins Connector. It's typical vertical frame rate (Fv) is 120Hz.
