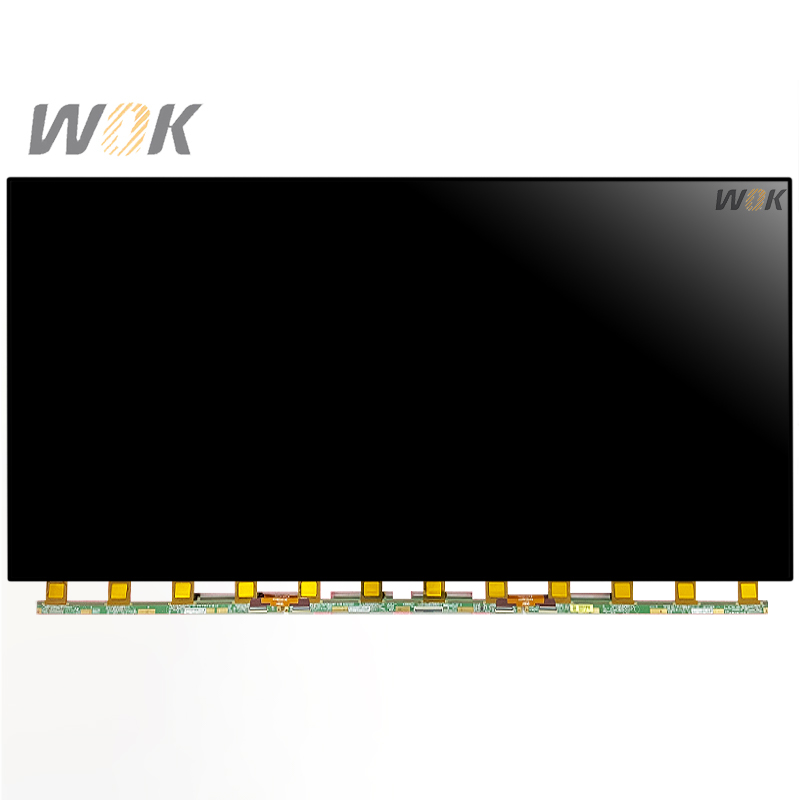

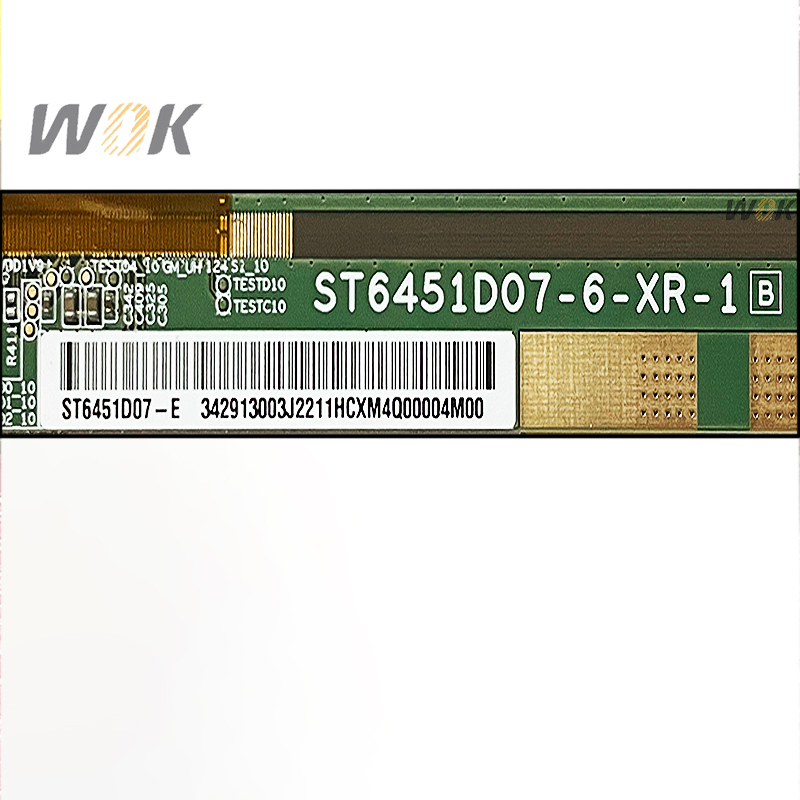

ST6451D07-E 65Inch LCD Screen Panel Replacement

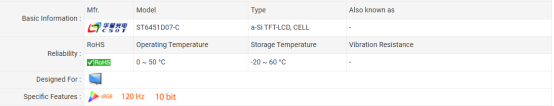

CSOT ST6451D07-E Application Features

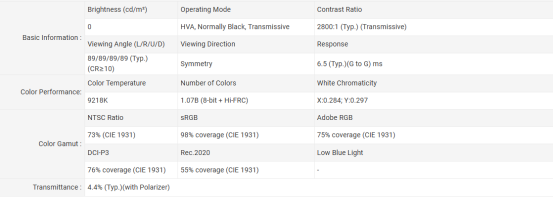

CSOT ST6451D07-E Optical Features

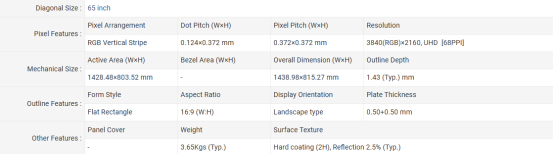

CSOT ST6451D07-E Mechanical Features
CSOT ST6451D07-E Electronics Features
CSOT ST6451D07-E Backlight Features

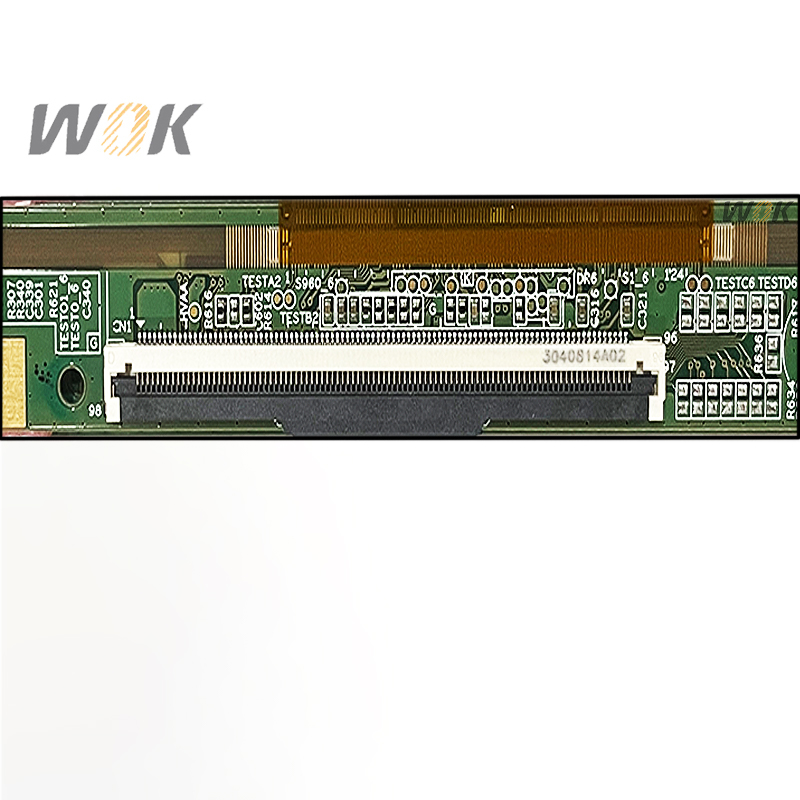

CSOT ST6451D07-E Interface Features
CSOT ST6451D07-E Packing Features
ST6451D07-E is a 65 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.ST6451D07-E supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1438.98(W)×815.27(H)×1.43(D) mm, with surface treament of Hard coating (2H), Reflection 2.5% (Typ.), net weight of 3.65Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a HVA, Normally Black, Transmissive CELL product, ST6451D07-E can provides 2800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (sRGB). This product have no backlight. ST6451D07-E utilizes USI-T as it's signal inputting systerm, which connected by 96 pins Connector. It's typical vertical frame rate (Fv) is 120Hz.
