ST6451D08-7 CSOT UHD 120Hz 65Inch LCD Panel
CSOT ST6451D08-7 Application Details

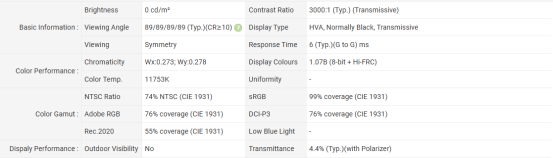

CSOT ST6451D08-7 Optical Details
CSOT ST6451D08-7 Mechanical Details
CSOT ST6451D08-7 Electronics Details
CSOT ST6451D08-7 Backlight Details
CSOT ST6451D08-7 Interface Detail
CSOT ST6451D08-7 Package Details

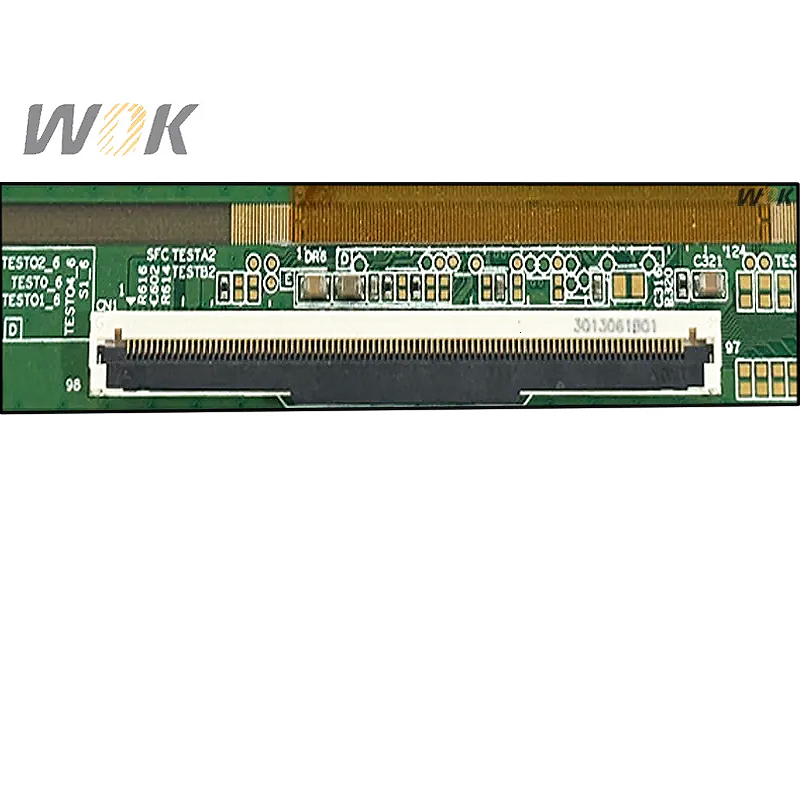

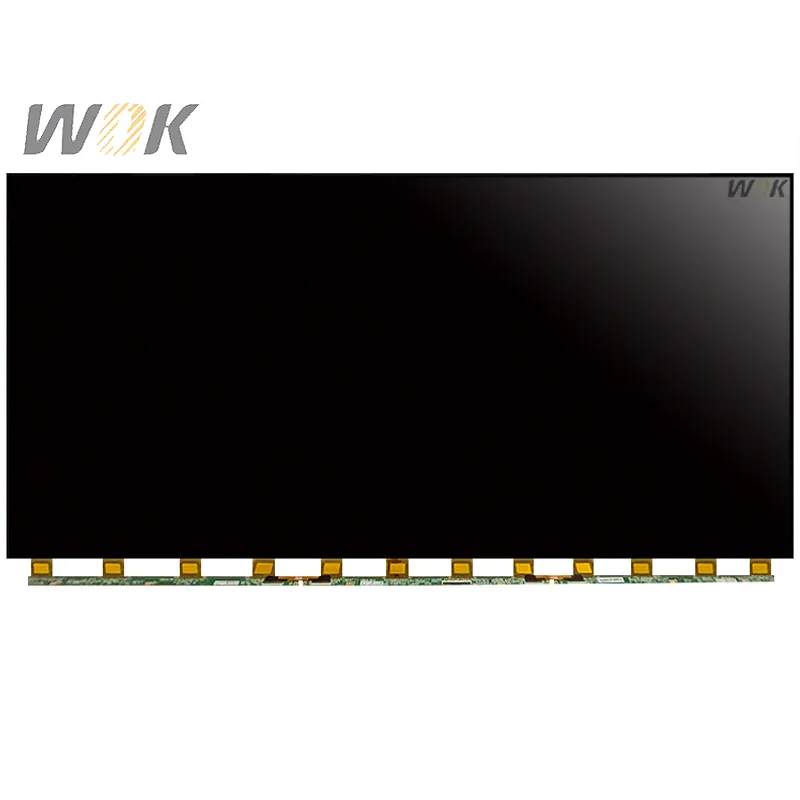

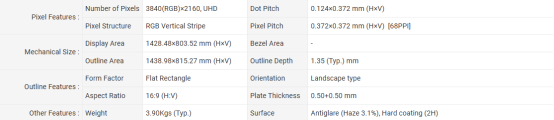

ST6451D08-7 is a 65 inch diagonal a-Si TFT-LCD display screen, without backlight, without touch screen.ST6451D08-7 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1438.98(W)×815.27(H)×1.35(D) mm, with surface treament of Antiglare (Haze 3.1%), Hard coating (2H), net weight of 3.90Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a HVA, Normally Black, Transmissive CELL product, ST6451D08-7 can provides 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (sRGB). This product have no backlight. ST6451D08-7 utilizes USI-T as it's signal inputting systerm, which connected by 96 pins Connector. It's typical vertical frame rate (Fv) is 120Hz.
