ST6451D08-A

ST6451D08-A 65Inch 4K TV Panel Product Collection

CSOT ST6451D08-A Application Details

CSOT ST6451D08-A Mechanical Details

CSOT ST6451D08-A Optical Details

CSOT ST6451D08-A Electronics Details

CSOT ST6451D08-A Interface Details

CSOT ST6451D08-A Lightting Details

CSOT ST6451D08-A Packing Details

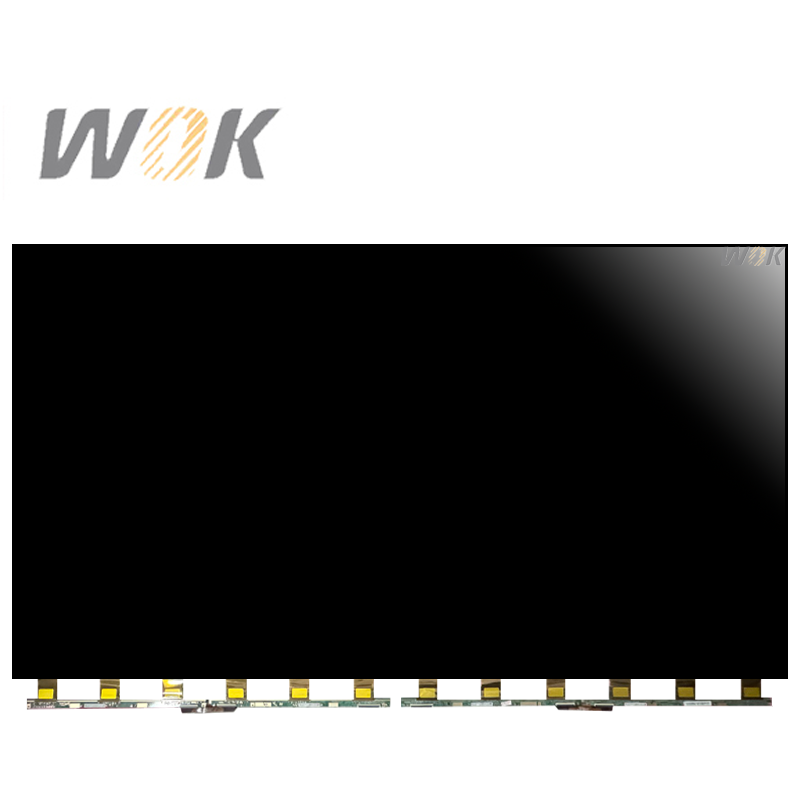

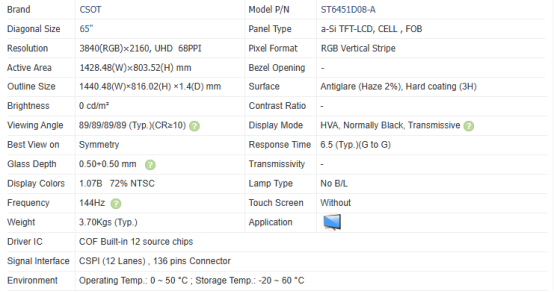

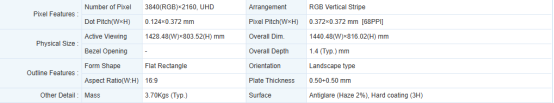

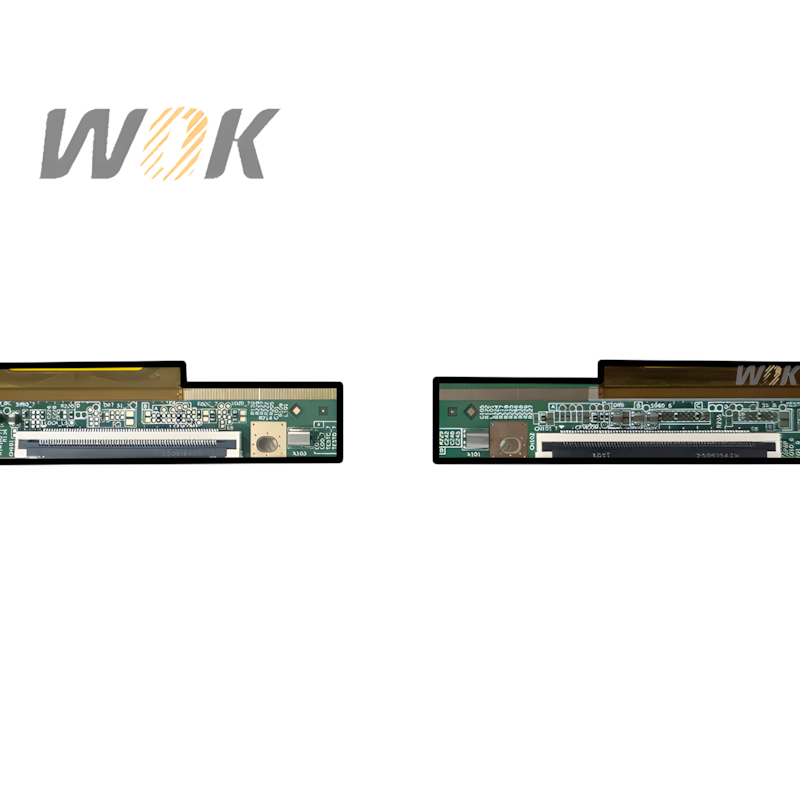

ST6451D08-A supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1440.48(W)×816.02(H)×1.4(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), net weight of 3.70Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a HVA, Normally Black, Transmissive CELL product, ST6451D08-A can provides , 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product have no backlight. ST6451D08-A utilizes CSPI (12 Lanes) as it's signal inputting systerm, which connected by 136 pins Connector. It's typical vertical frame rate (Fv) is 144Hz.
