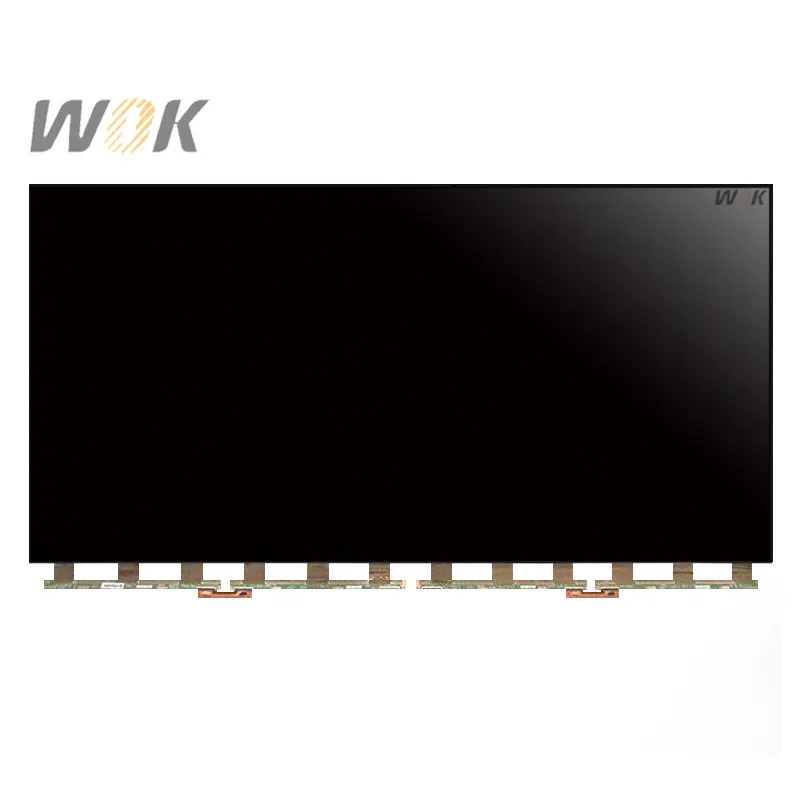

BOE Display HV650QUB-F9K 65Inch LCD Replacement
BOE HV650QUB-F9K Application Details

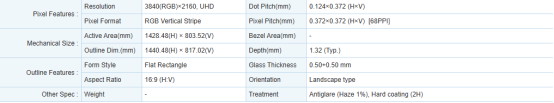

BOE HV650QUB-F9K Mechanical Details
BOE HV650QUB-F9K Optical Details
BOE HV650QUB-F9K Electronics Details
BOE HV650QUB-F9K Interface Details
BOE HV650QUB-F9K Backlight Details

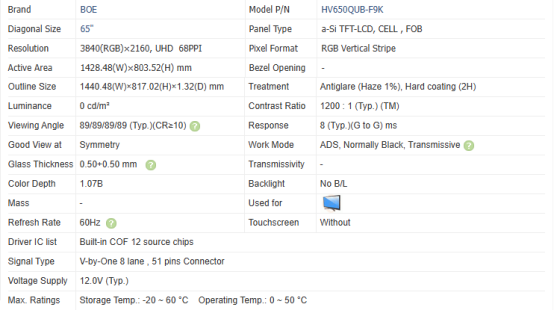

HV650QUB-F9K supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1440.48(W)×817.02(H)×1.32(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (2H), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, HV650QUB-F9K can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors. This product have no backlight. HV650QUB-F9K utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
