BOE 4K HF550QUB-F20 55Inch LCD TV Panel Product Collection
BOE HF550QUB-F20 Application Details
BOE HF550QUB-F20 Mechanical Details
BOE HF550QUB-F20 Optical Details
BOE HF550QUB-F20 Electronics Details
BOE HF550QUB-F20 Backlight Details
BOE HF550QUB-F20 Interface Details
BOE HF550QUB-F20 Carton Details

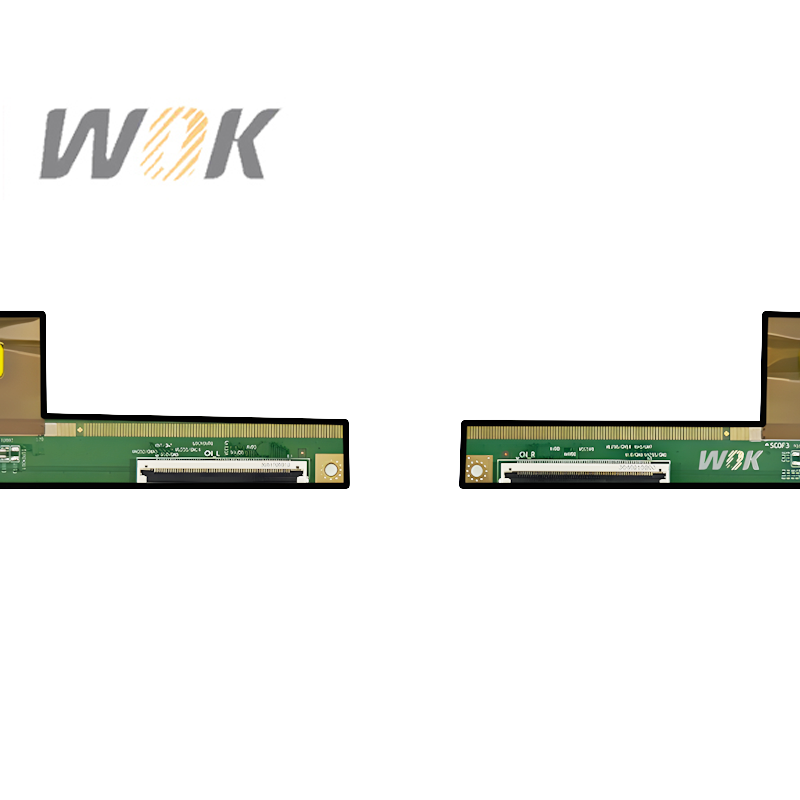

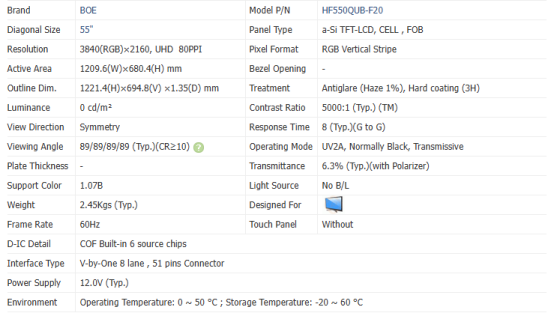

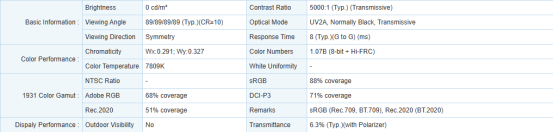

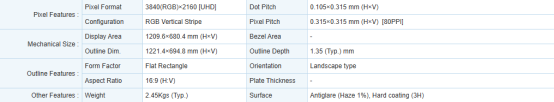

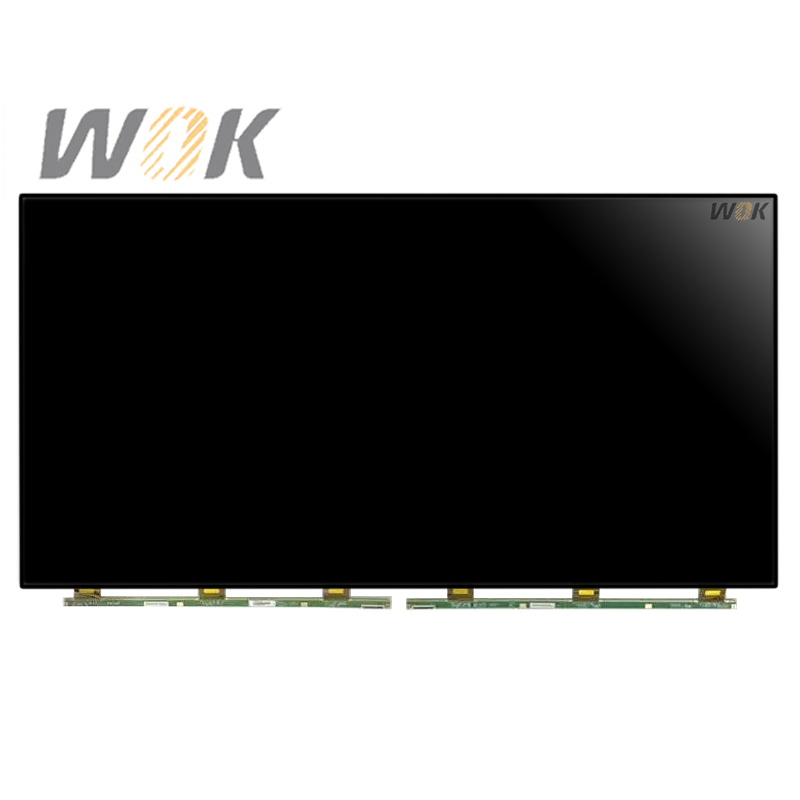

HF550QUB-F20 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1221.4(W)×694.8(H)×1.35(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 2.45Kgs (Typ.). As a UV2A, Normally Black, Transmissive CELL product, HF550QUB-F20 can provides 5000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors. This product have no backlight. HF550QUB-F20 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
