BOE UHD HV550QUB-E12 55Inch LCD Screen Product Collection

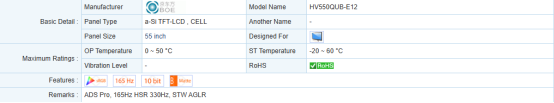

BOE HV550QUB-E12 Application Details

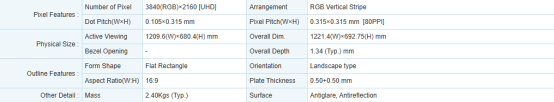

BOE HV550QUB-E12 Mechanical Details

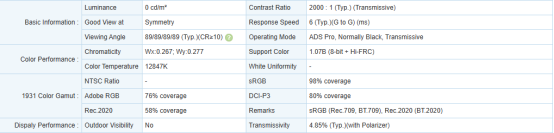

BOE HV550QUB-E12 Optical Details
BOE HV550QUB-E12 Electronics Details

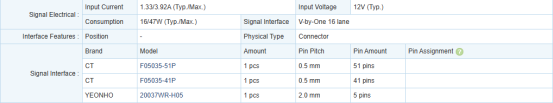

BOE HV550QUB-E12 Interface Details
BOE HV550QUB-E12 Lightting Details
BOE HV550QUB-E12 Packing Details

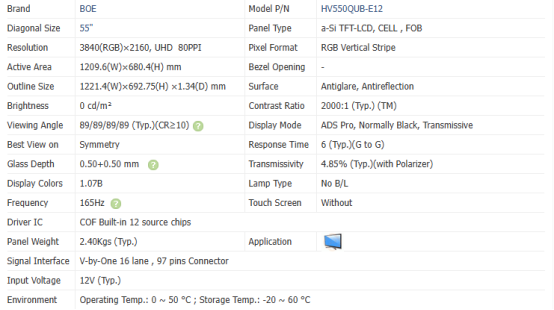

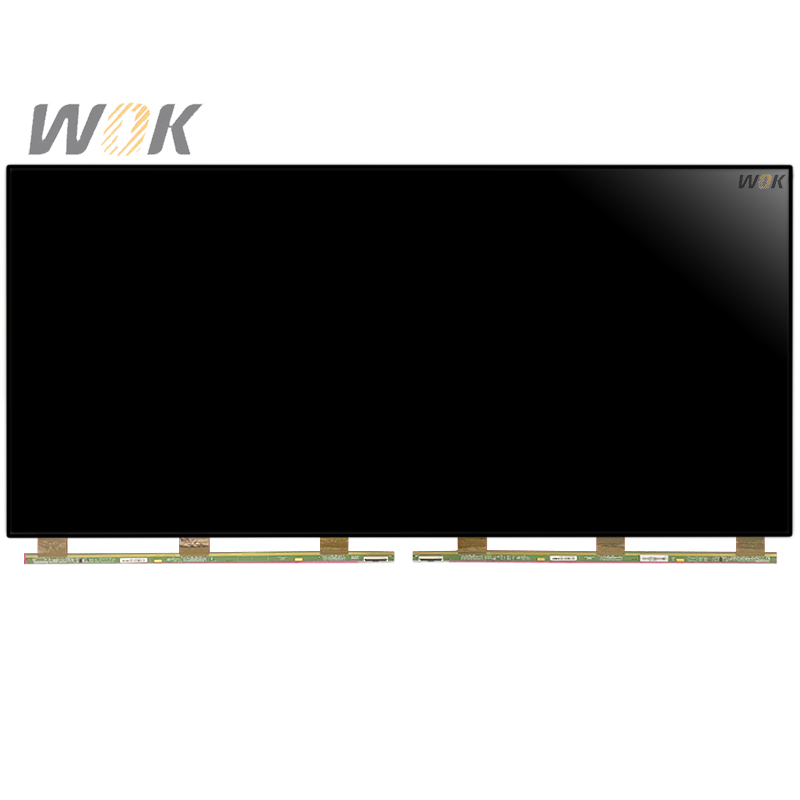

HV550QUB-E12 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1221.4(W)×692.75(H)×1.34(D) mm, with surface treament of Antiglare, Antireflection, net weight of 2.40Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS Pro, Normally Black, Transmissive CELL product, HV550QUB-E12 can provides 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors. This product have no backlight. HV550QUB-E12 utilizes V-by-One 16 lane as it's signal inputting systerm, which connected by 97 pins Connector with power supply voltage of 12V (Typ.). It's typical vertical frame rate (Fv) is 165Hz.
