HV550QUB-F5B

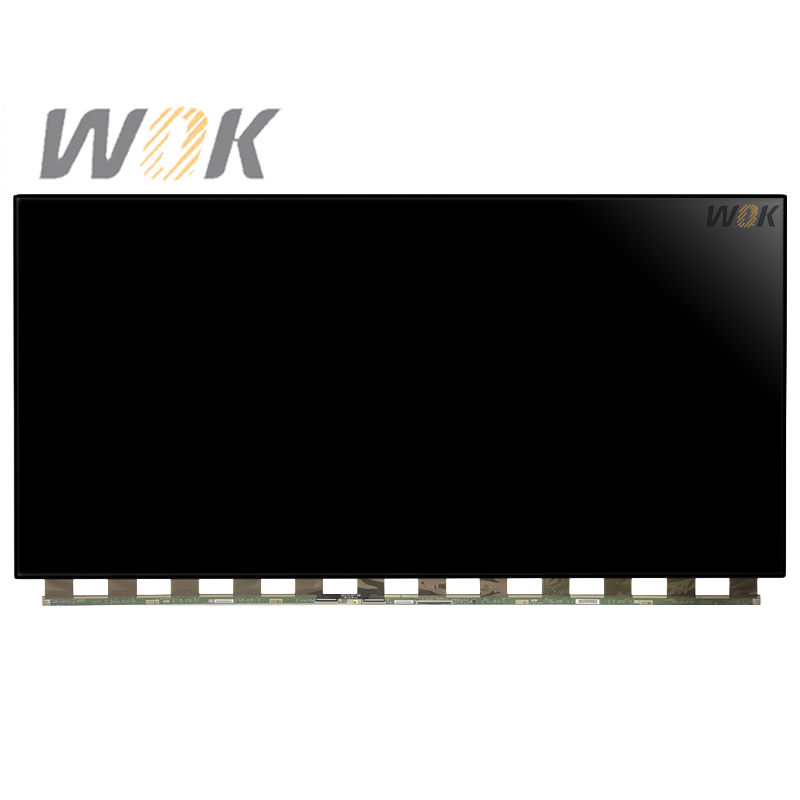

BOE 4K 55Inch HV550QUB-F5B LCD Screen Panel

BOE HV550QUB-F5B Application Details

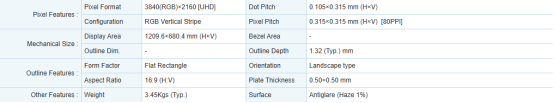

BOE HV550QUB-F5B Mechanical Details

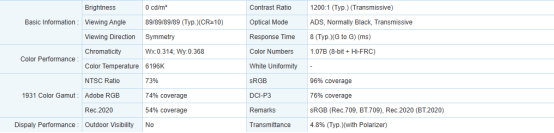

BOE HV550QUB-F5B Optical Details

BOE HV550QUB-F5B Electronics Details

BOE HV550QUB-F5B Backlight Details

BOE HV550QUB-F5B Interface Details

BOE HV550QUB-F5B Carton Details

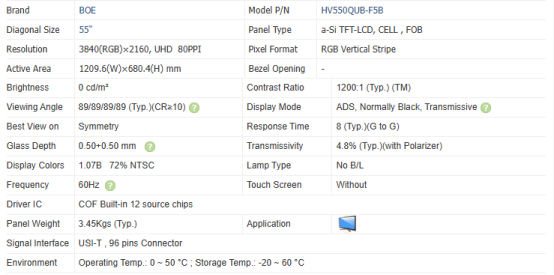

HV550QUB-F5B is a 55 inch diagonal a-Si TFT-LCD display screen,without backlight, without touch screen.HV550QUB-F5B supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, with surface treament of Antiglare (Haze 1%), net weight of 3.45Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, HV550QUB-F5B can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product have no backlight. HV550QUB-F5B utilizes USI-T as it's signal inputting systerm, which connected by 96 pins Connector. It's typical vertical frame rate (Fv) is 60Hz.
