BOE HV550QUB-H13 4K 55Inch LCD Panel Replacement

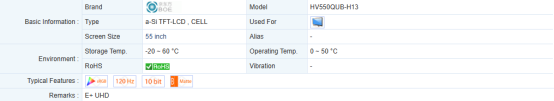

BOE HV550QUB-H13 Application Details
BOE HV550QUB-H13 Mechanical Details
BOE HV550QUB-H13 Optical Details
BOE HV550QUB-H13 Electronics Details
BOE HV550QUB-H13 Interface Detail
BOE HV550QUB-H13 Backlight Details
BOE HV550QUB-H13 Packing Details

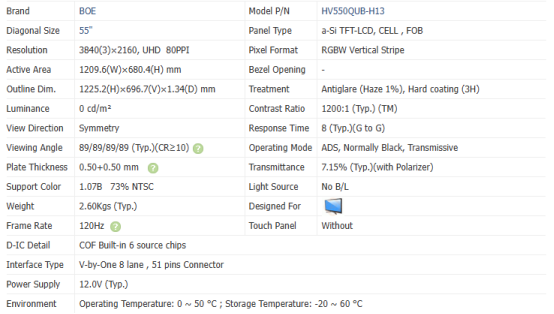

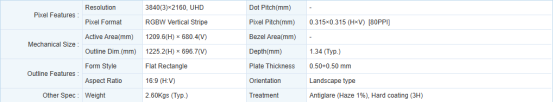

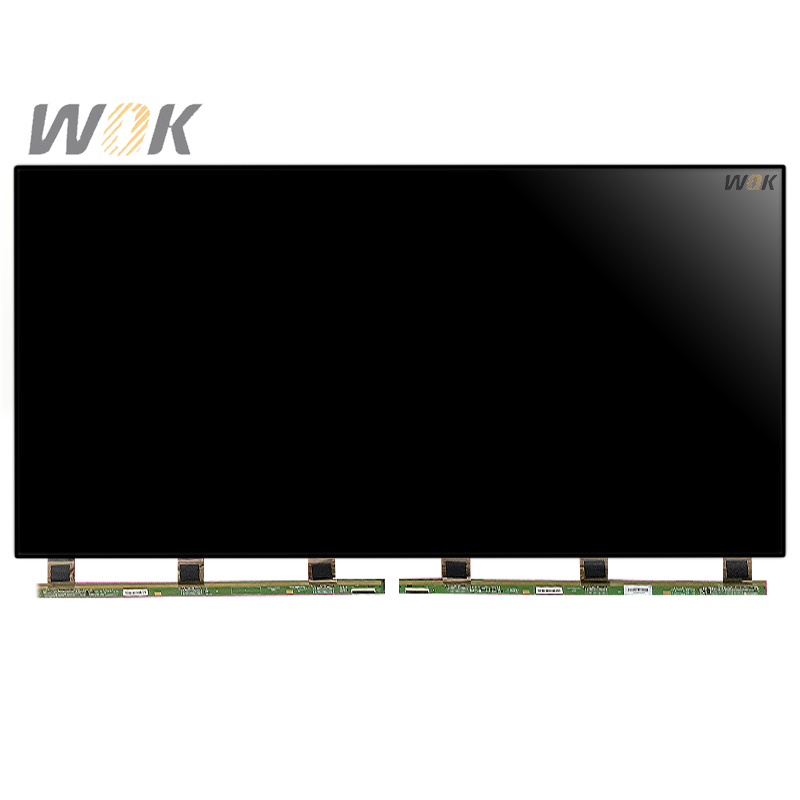

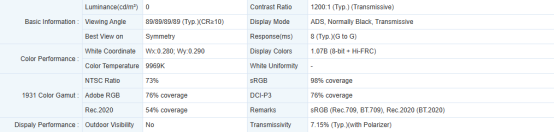

HV550QUB-H13 is a 55 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.HV550QUB-H13 supports display 3840(3)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGBW Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1225.2(W)×696.7(H)×1.34(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 2.60Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, HV550QUB-H13 can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 73% (NTSC). This product have no backlight. HV550QUB-H13 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.
