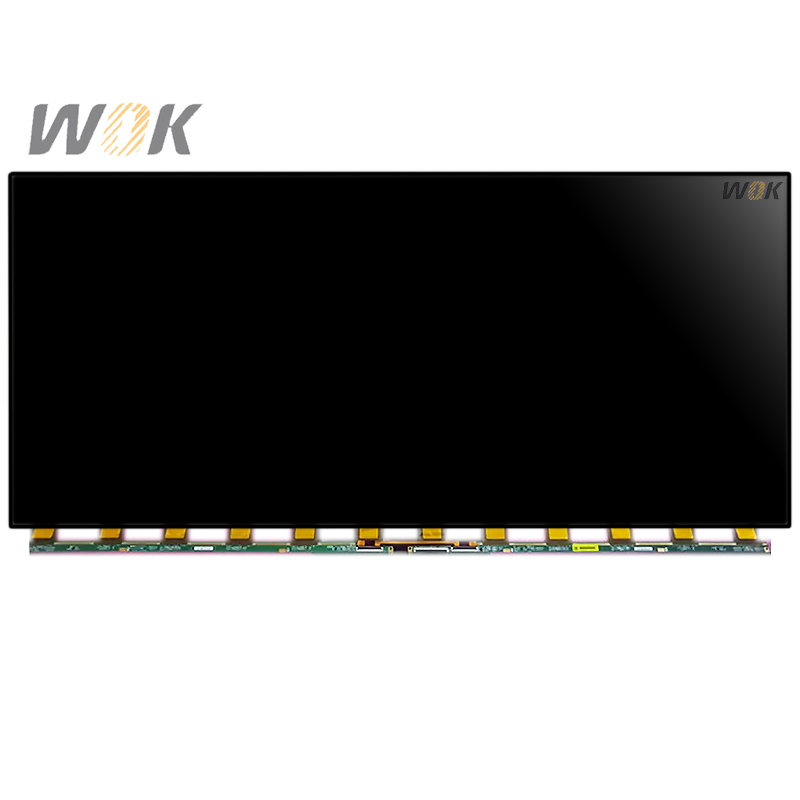

BOE 4K 55Inch HV550QUB-S5A LCD Panel Replacement

BOE HV550QUB-S5A Application Features

BOE HV550QUB-S5A Mechanical Features

BOE HV550QUB-S5A Optical Features

BOE HV550QUB-S5A Electronics Features

BOE HV550QUB-S5A Interface Features

BOE HV550QUB-S5A Backlight Features

BOE HV550QUB-S5A Packing Features

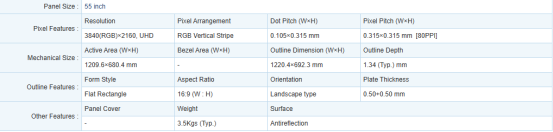

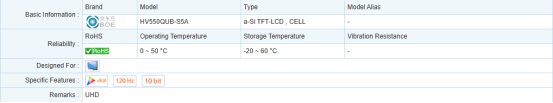

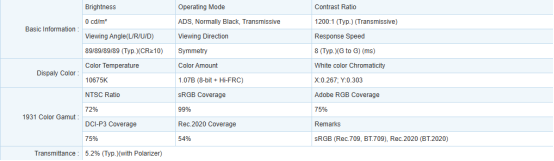

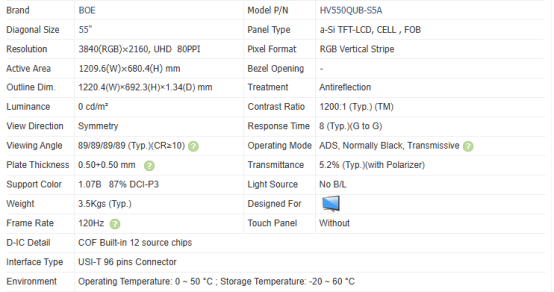

HV550QUB-S5A supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1220.4(W)×692.3(H)×1.34(D) mm, with surface treament of Antireflection, net weight of 3.5Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, HV550QUB-S5A can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 87% (DCI-P3). This product have no backlight. HV550QUB-S5A utilizes USI-T as it's signal inputting systerm, which connected by 96 pins Connector. It's typical vertical frame rate (Fv) is 120Hz.
