HV550QUB-V8D

HV550QUB-V8D BOE 55Inch LCD Screen Product Collection

BOE HV550QUB-V8D Application Features

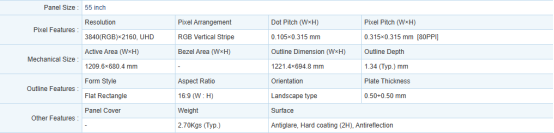

BOE HV550QUB-V8D Mechanical Features

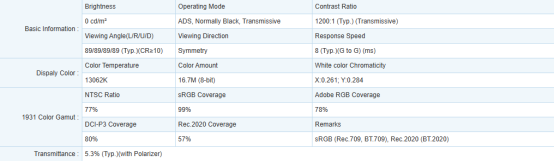

BOE HV550QUB-V8D Optical Features

BOE HV550QUB-V8D Electronics Features

BOE HV550QUB-V8D Interface Features

BOE HV550QUB-V8D Backlight Features

BOE HV550QUB-V8D Packing Features

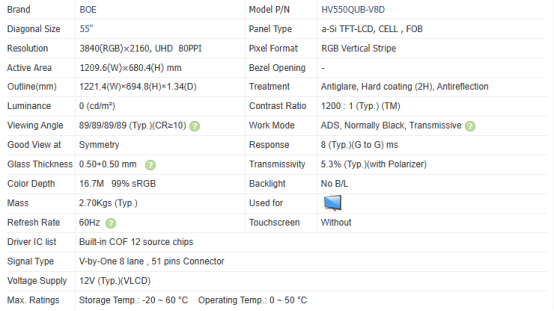

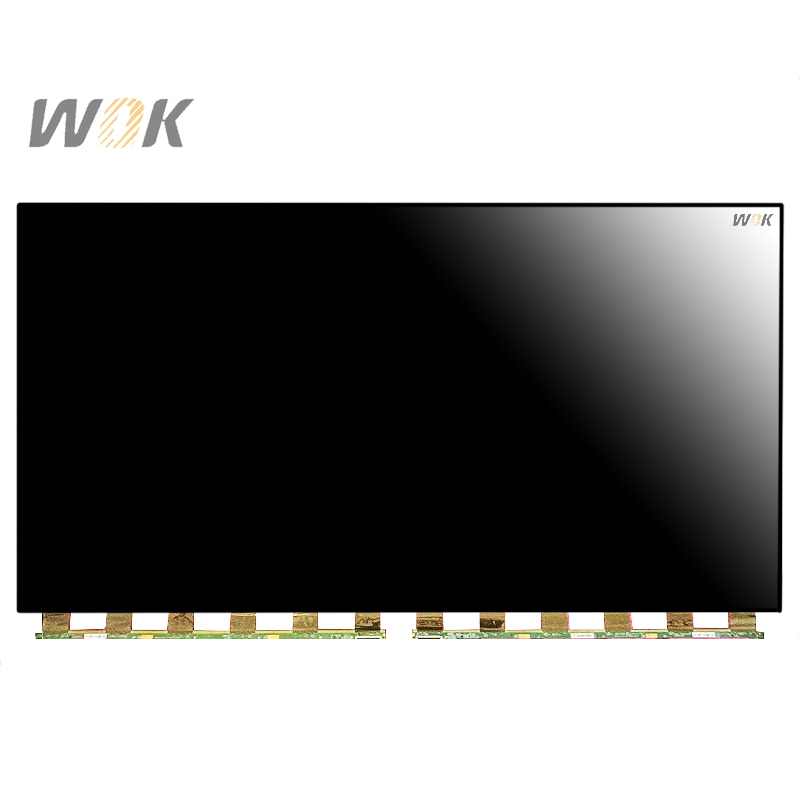

HV550QUB-V8D is a 55 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.HV550QUB-V8D supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1221.4(W)×694.8(H)×1.34(D) mm, with surface treament of Antiglare, Hard coating (2H), Antireflection, net weight of 2.70Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, HV550QUB-V8D can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product have no backlight. HV550QUB-V8D utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12V (Typ.)(VLCD). It's typical vertical frame rate (Fv) is 60Hz.
