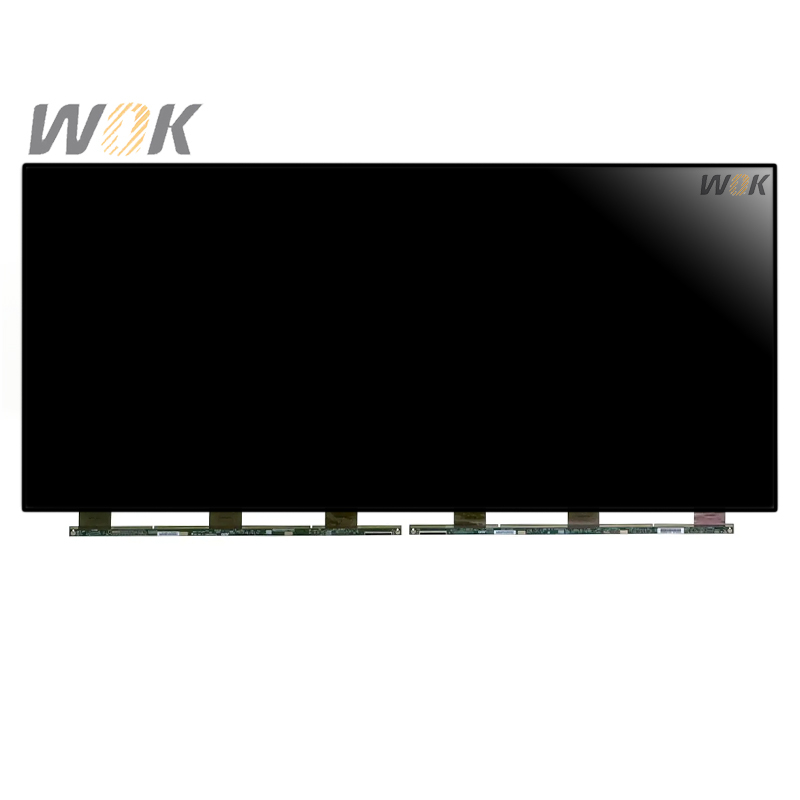

AUO 43Inch T430HVN01.2 LCD Screen TV Replacement

AUO T430HVN01.2 CELL Application Details

AUO T430HVN01.2 CELL Mechanical Details

AUO T430HVN01.2 CELL Optical Details

AUO T430HVN01.2 CELL Electronics Details

AUO T430HVN01.2 CELL Backlight Details

AUO T430HVN01.2 CELL Interface Detail

AUO T430HVN01.2 CELL Carton Details

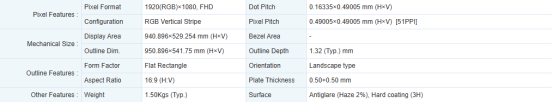

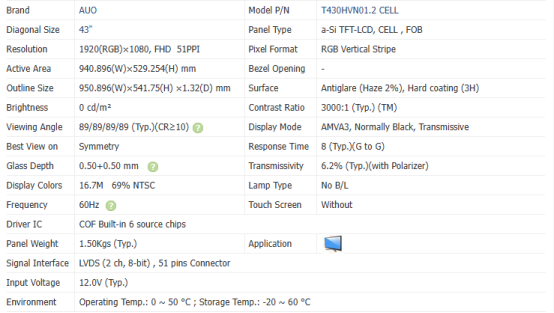

T430HVN01.2 CELL supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 940.896(W)×529.254(H) mm, outline size of 950.896(W)×541.75(H)×1.32(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), net weight of 1.50Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a AMVA3, Normally Black, Transmissive CELL product, T430HVN01.2 CELL can provides 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 69% (NTSC). This product have no backlight. T430HVN01.2 CELL utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
