T430QVN03.6

AUO Display 43Inch T430QVN03.6 LCD Panel

AUO T430QVN03.6 CELL Application Details

AUO T430QVN03.6 CELL Mechanical Details

AUO T430QVN03.6 CELL Optical Details

AUO T430QVN03.6 CELL Electronics Details

AUO T430QVN03.6 CELL Lightting Details

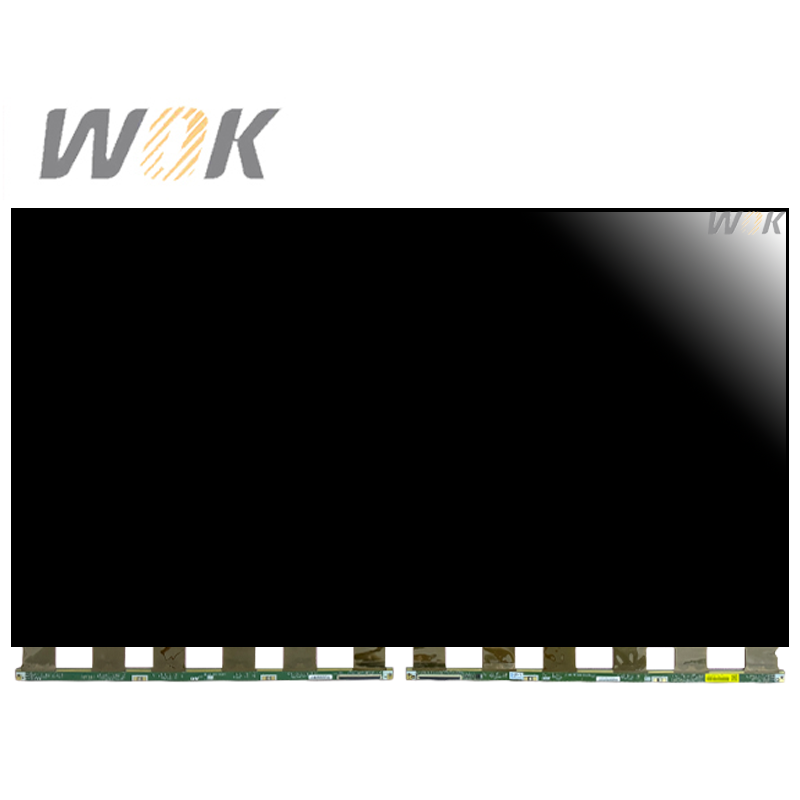

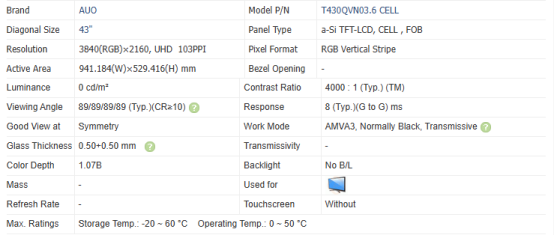

T430QVN03.6 CELL is a 43 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen. T430QVN03.6 CELL supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 941.184(W)×529.416(H) mm, utilizing 0.50+0.50 mm mm plate. As a AMVA3, Normally Black, Transmissive CELL product, T430QVN03.6 CELL can provides 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors. This product have no backlight.
