T430QVN03.K CELL 43Inch LCD Modules Product Collection
AUO T430QVN03.K CELL Application Details

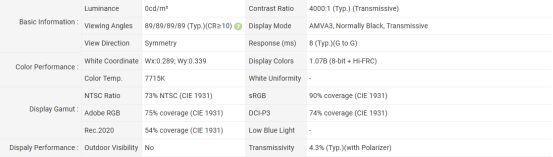

AUO T430QVN03.K CELL Optical Details

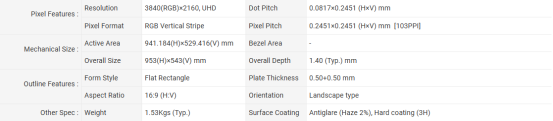

AUO T430QVN03.K CELL Mechanical Details
AUO T430QVN03.K CELL Electronics Details
AUO T430QVN03.K CELL Backlight Details

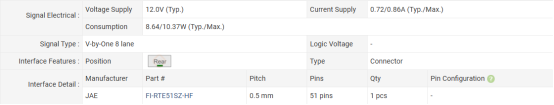

AUO T430QVN03.K CELL Interface Details
AUO T430QVN03.K CELL Package Details

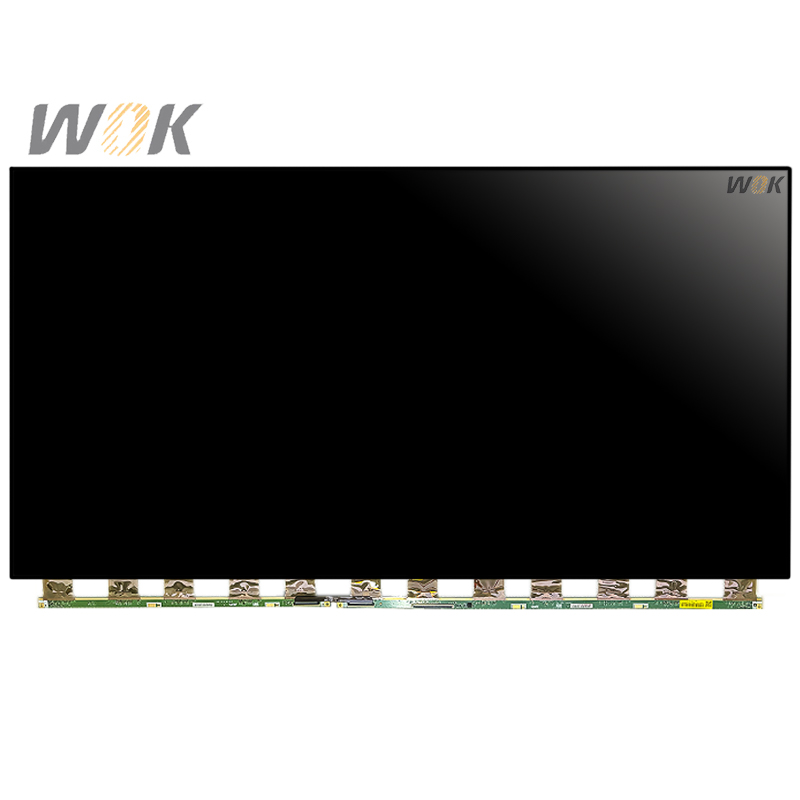

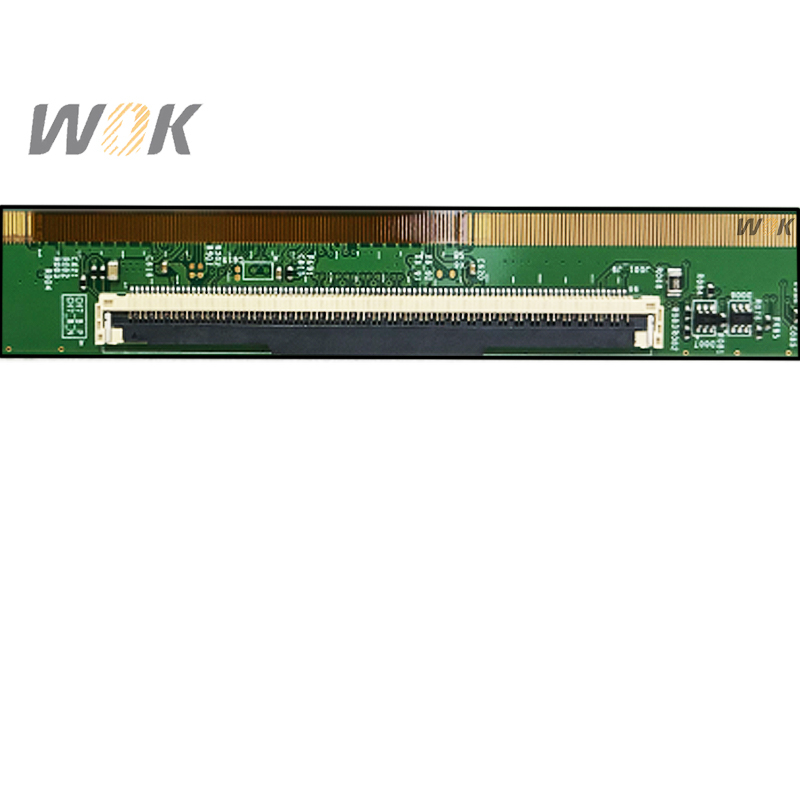

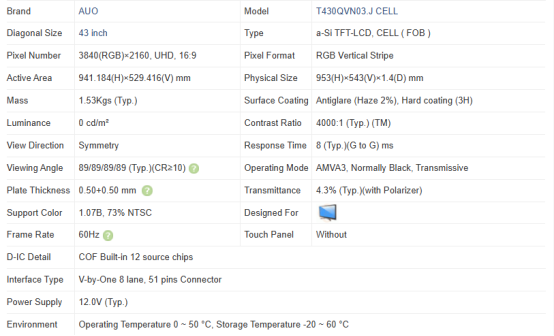

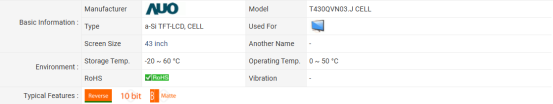

T430QVN03.K CELL is a 43 inch diagonal a-Si TFT-LCD display screen, without backlight, without touch screen.T430QVN03.K CELL supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 941.184(W)×529.416(H) mm, outline size of 953(W)×543(H)×1.4(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), net weight of 1.53Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a AMVA3, Normally Black, Transmissive CELL product, T430QVN03.K CELL can provides 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 73% (NTSC). This product have no backlight. T430QVN03.K CELL utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
