HV650QUB-F72

65inch HV650QUB-F72 3840*2160 120pins LCD Screen Product Collection

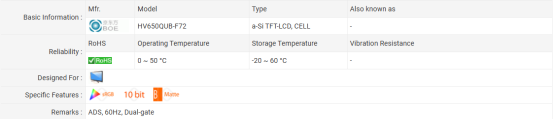

BOE HV650QUB-F72 Application Features

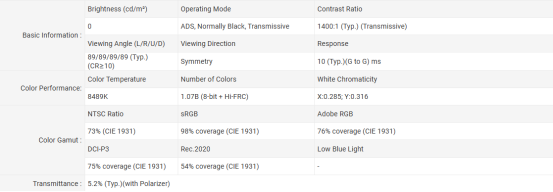

BOE HV650QUB-F72 Optical Features

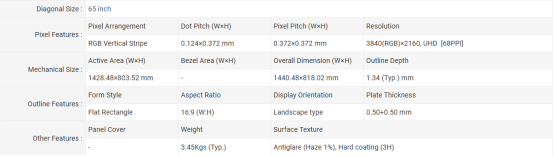

BOE HV650QUB-F72 Mechanical Features

BOE HV650QUB-F72 Electronics Features

BOE HV650QUB-F72 Backlight Features

BOE HV650QUB-F72 Interface Features

BOE HV650QUB-F72 Packing Features

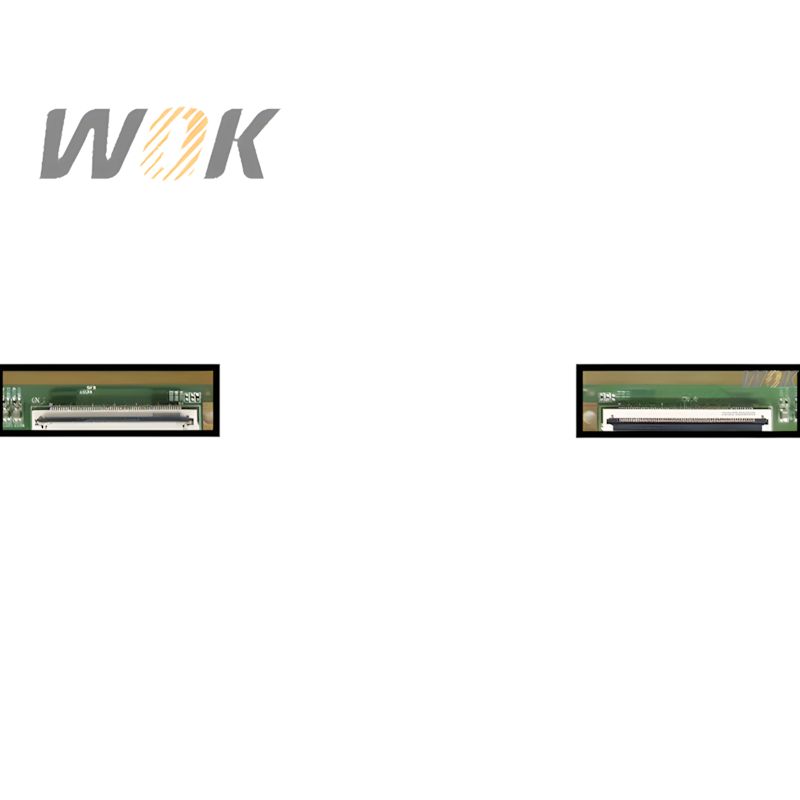

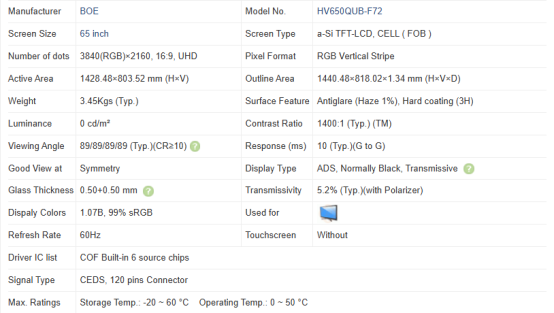

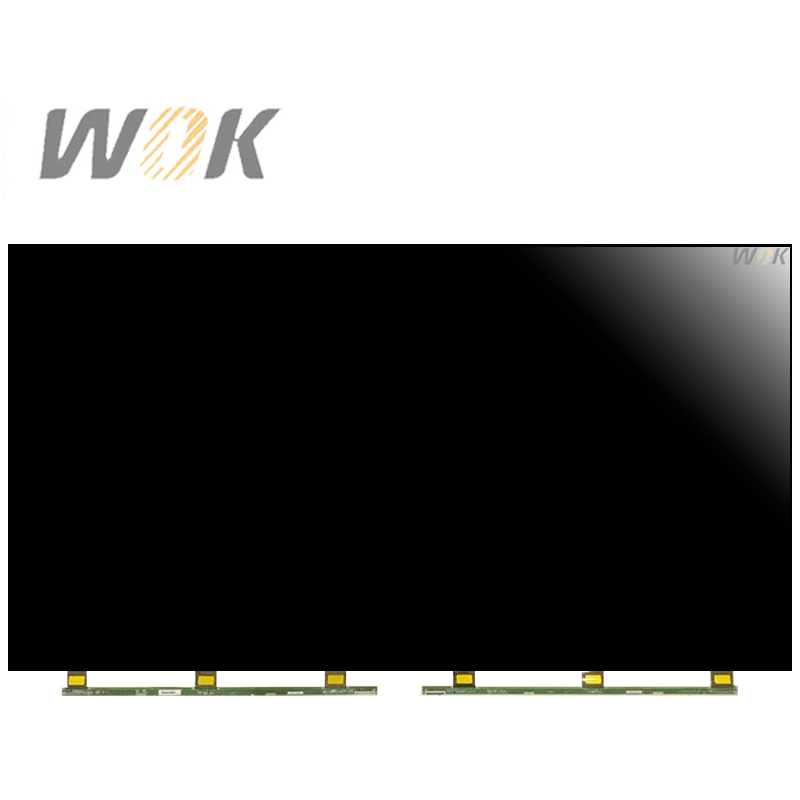

HV650QUB-F72 is a 65 inch diagonal a-Si TFT-LCD display screen, without backlight, without touch screen.HV650QUB-F72 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1440.48(W)×818.02(H)×1.34(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 3.45Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, HV650QUB-F72 can provides 1400:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (sRGB). This product have no backlight. HV650QUB-F72 utilizes CEDS as it's signal inputting systerm, which connected by 120 pins Connector. It's typical vertical frame rate (Fv) is 60Hz.
