65inch HV650QUB-E75 3840*2160 UHD 136 pins 144Hz LCD Modules

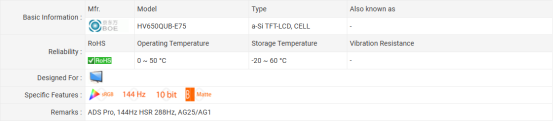

BOE HV650QUB-E75 Application Features

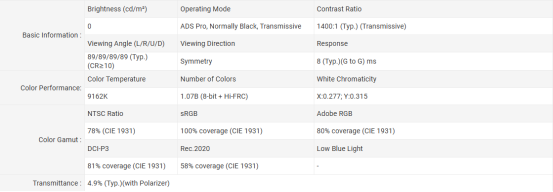

BOE HV650QUB-E75 Optical Features

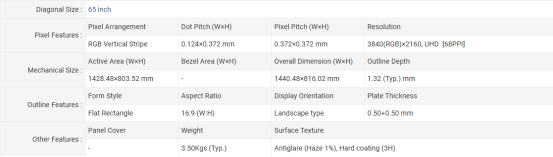

BOE HV650QUB-E75 Mechanical Features
BOE HV650QUB-E75 Electronics Features
BOE HV650QUB-E75 Backlight Features

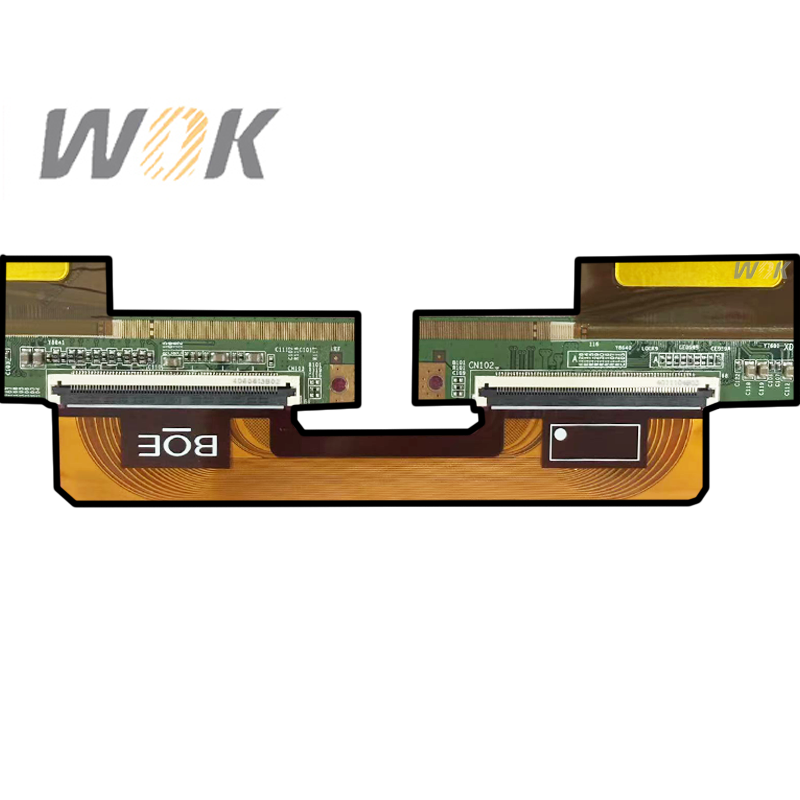

BOE HV650QUB-E75 Interface Features
BOE HV650QUB-E75 Packing Features

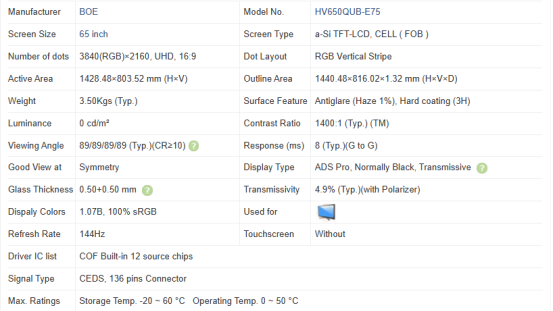

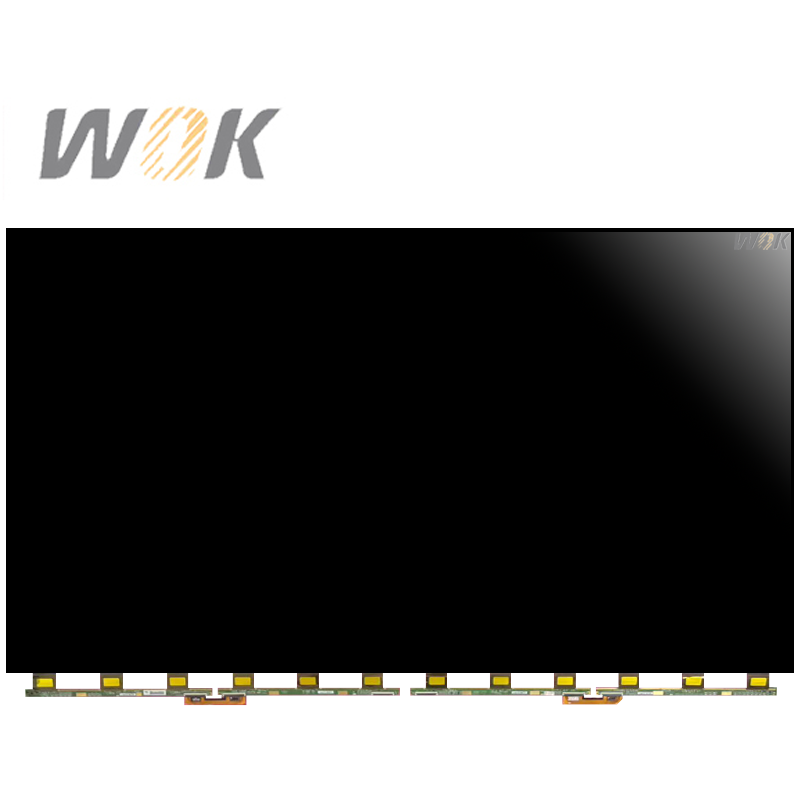

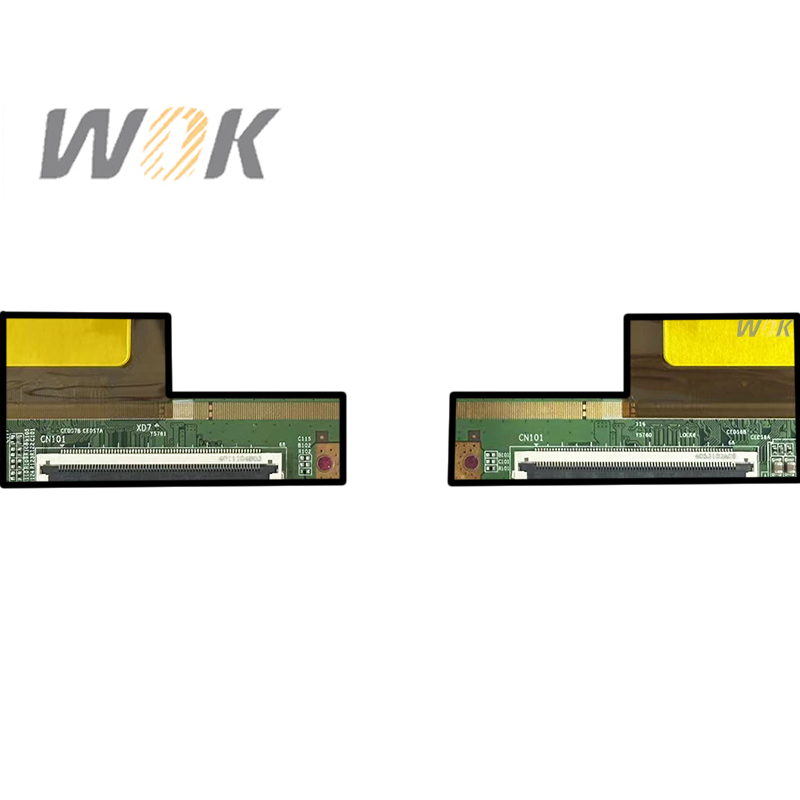

HV650QUB-E75 is a 65 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.HV650QUB-E75 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1440.48(W)×816.02(H)×1.32(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 3.50Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS Pro, Normally Black, Transmissive CELL product, HV650QUB-E75 can provides 1400:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product have no backlight. HV650QUB-E75 utilizes CEDS as it's signal inputting systerm, which connected by 136 pins Connector. It's typical vertical frame rate (Fv) is 144Hz.
