HV550QUB-N5K

HV550QUB-N5K 55inch 3840*2160 51 pins LCD Modules

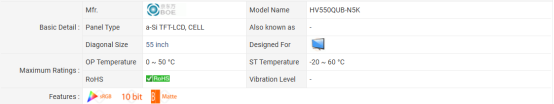

BOE HV550QUB-N5K Application Details

BOE HV550QUB-N5K Optical Details

BOE HV550QUB-N5K Mechanical Details

BOE HV550QUB-N5K Electronics Details

BOE HV550QUB-N5K Lightting Details

BOE HV550QUB-N5K Interface Detail

BOE HV550QUB-N5K Packing Details

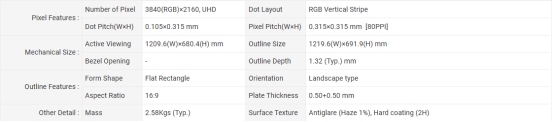

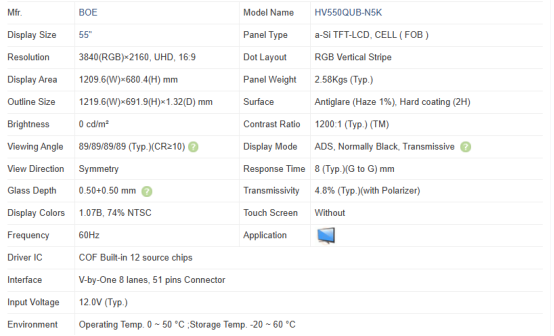

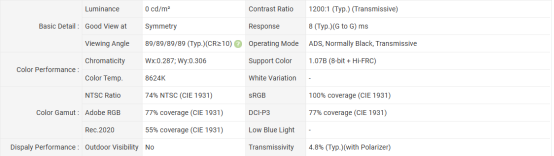

HV550QUB-N5K supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1209.6(W)×680.4(H) mm, outline size of 1219.6(W)×691.9(H)×1.32(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (2H), net weight of 2.58Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, HV550QUB-N5K can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 74% (NTSC). This product have no backlight. HV550QUB-N5K utilizes V-by-One 8 lanes as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
