LSF750ZF02-P01 18Y-Q75 75inch 3840*2160 8K 120Hz LCD Screen for Samsung
Samsung LSF750ZF02-P01 18Y-Q75 Application Details
Samsung LSF750ZF02-P01 18Y-Q75 Optical Details

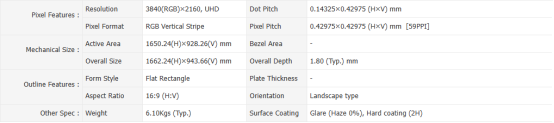

Samsung LSF750ZF02-P01 18Y-Q75 Mechanical Details
Samsung LSF750ZF02-P01 18Y-Q75 Electronics Details
Samsung LSF750ZF02-P01 18Y-Q75 Backlight Details

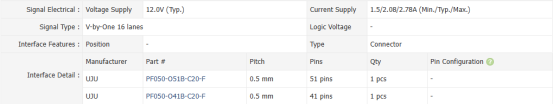

Samsung LSF750ZF02-P01 18Y-Q75 Interface Details

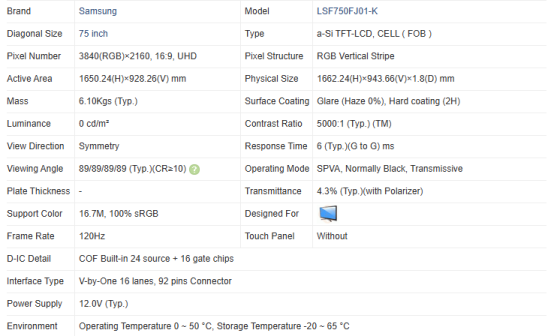

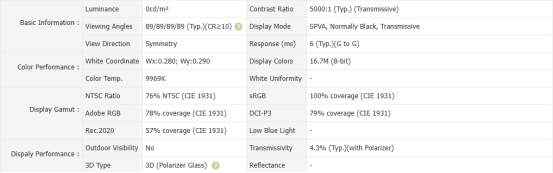

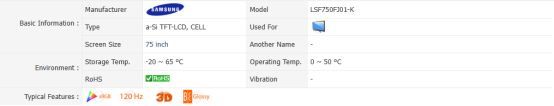

LSF750ZF02-P01 18Y-Q75 is a 75 inch diagonal a-Si TFT-LCD display screen, without backlight,LSF750ZF02-P01 18Y-Q75 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1650.24(W)×928.26(H) mm, outline size of 1662.24(W)×943.66(H)×1.8(D) mm, with surface treament of Glare (Haze 0%), Hard coating (2H), net weight of 6.10Kgs (Typ.). As a SPVA, Normally Black, Transmissive CELL product, LSF750ZF02-P01 18Y-Q75 can provides 5000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product have no backlight. LSF750ZF02-P01 18Y-Q75 utilizes V-by-One 16 lanes as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.
