65Inch LCD Screen Panel Replacement ST645AD10-1
CSOT ST645AD10-1 Application Details

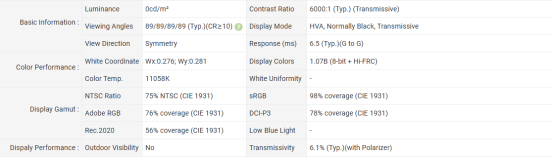

CSOT ST645AD10-1 Optical Details

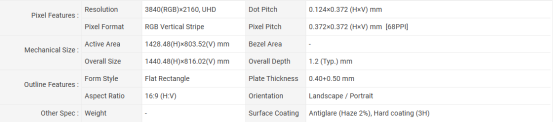

CSOT ST645AD10-1 Mechanical Details
CSOT ST645AD10-1 Electronics Details
CSOT ST645AD10-1 Backlight Details
CSOT ST645AD10-1 Interface Details
CSOT ST645AD10-1 Package Details

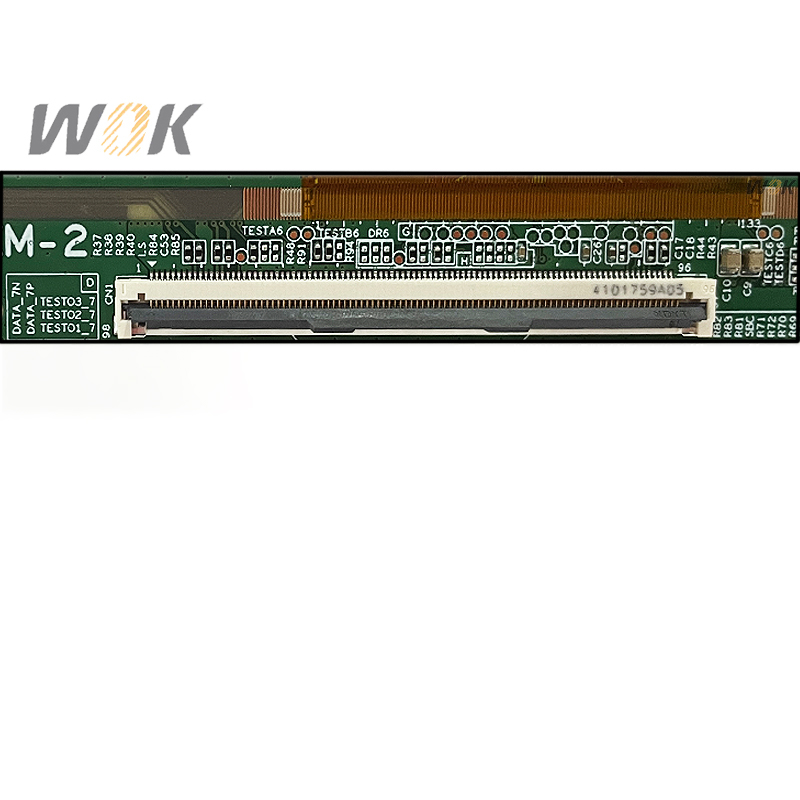

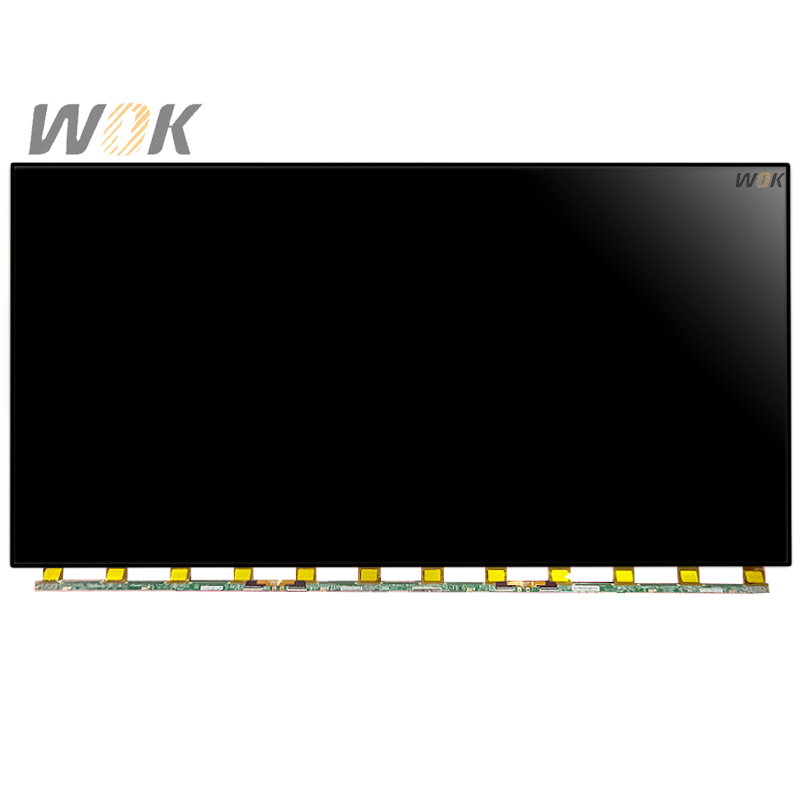

ST645AD10-1 is a 65 inch diagonal a-Si TFT-LCD display screen, without backlight, without touch screen.ST645AD10-1 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1440.48(W)×816.02(H)×1.2(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), utilizing 0.40+0.50 mm mm plate. As a HVA, Normally Black, Transmissive CELL product, ST645AD10-1 can provides 6000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product have no backlight. ST645AD10-1 utilizes CSPI (12 Lanes) as it's signal inputting systerm, which connected by 96 pins Connector. It's typical vertical frame rate (Fv) is 120Hz.
