ST6451D02-F 65Inch LCD Screen Panel Replacement
CSOT ST6451D02-F Application Details

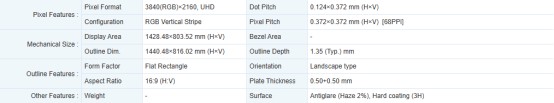

CSOT ST6451D02-F Mechanical Details

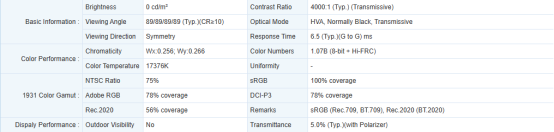

CSOT ST6451D02-F Optical Details
CSOT ST6451D02-F Electronics Details
CSOT ST6451D02-F Backlight Details

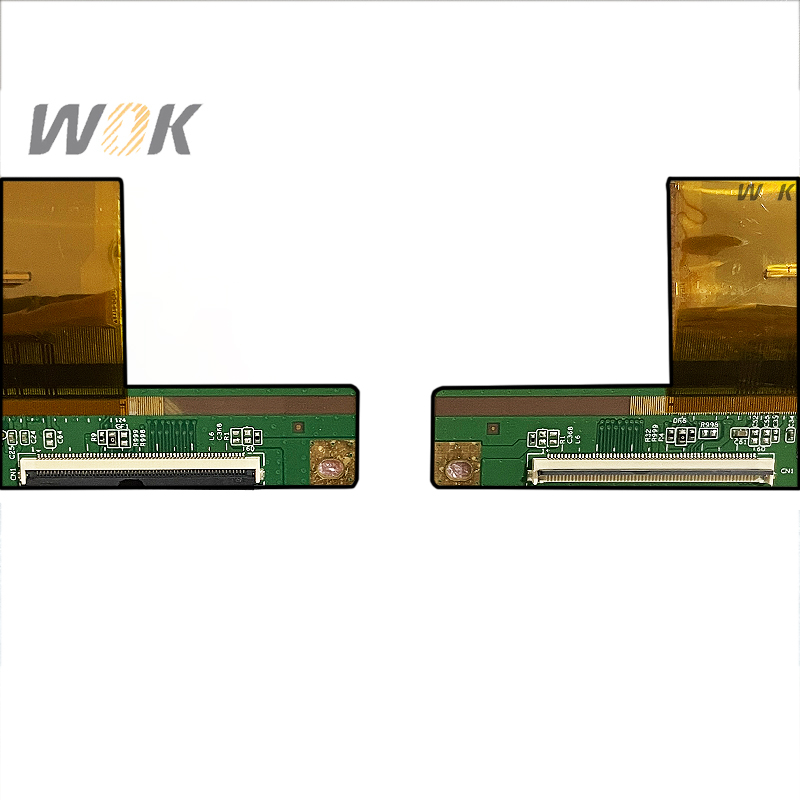

CSOT ST6451D02-F Interface Detail
CSOT ST6451D02-F Carton Details

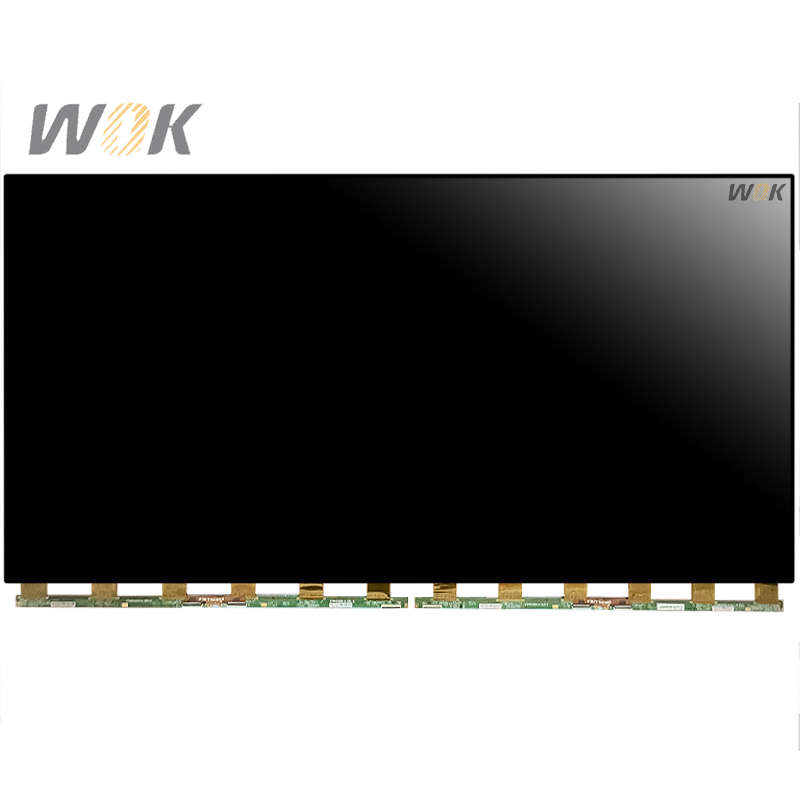

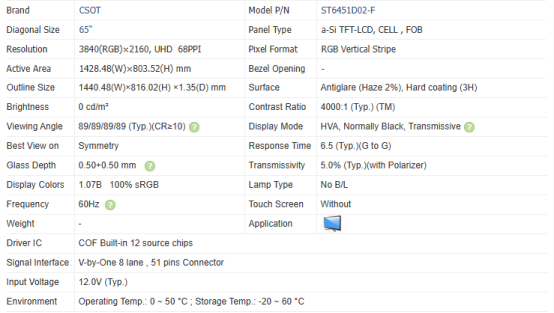

ST6451D02-F is a 65 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.ST6451D02-F supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1440.48(W)×816.02(H)×1.35(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), utilizing 0.50+0.50 mm mm plate. As a HVA, Normally Black, Transmissive CELL product, ST6451D02-F can provides 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product have no backlight. ST6451D02-F utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
