ST6451D04-9

65Inch 4K 60Hz LCD Panel Replacement ST6451D04-9

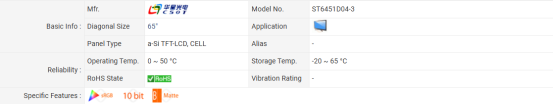

CSOT ST6451D04-9 Application Details

CSOT ST6451D04-9 Optical Details

CSOT ST6451D04-9 Mechanical Details

CSOT ST6451D04-9 Electronics Details

CSOT ST6451D04-9 Backlight Details

CSOT ST6451D04-9 Interface Details

CSOT ST6451D04-9 Package Details

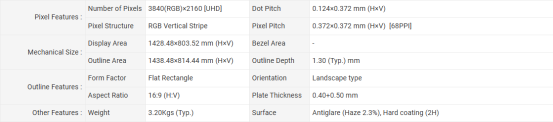

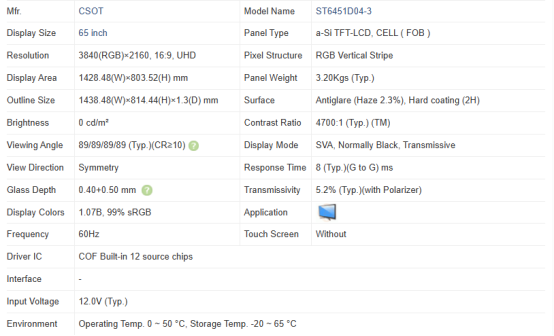

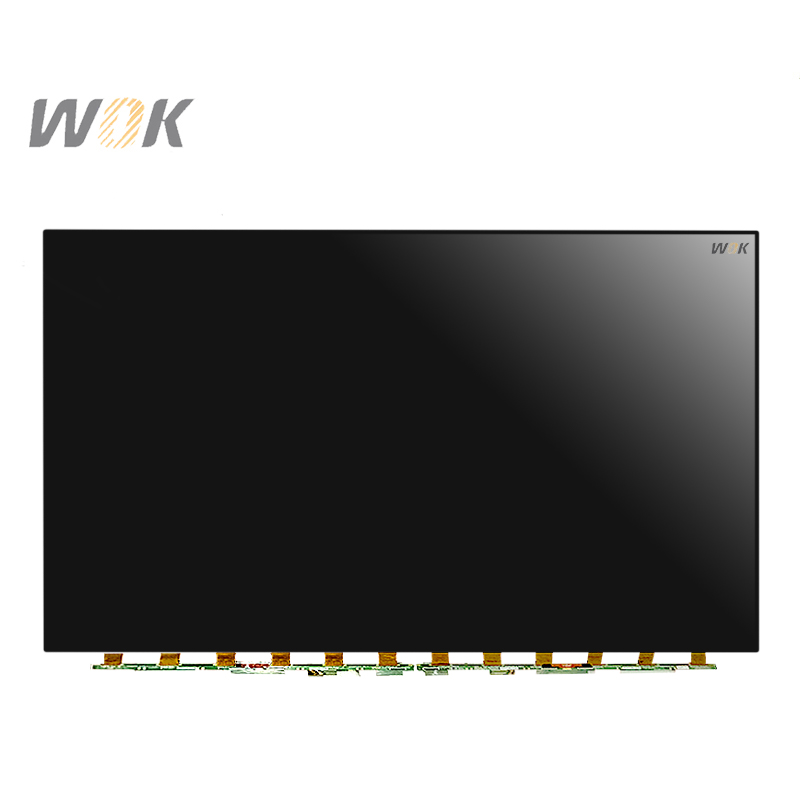

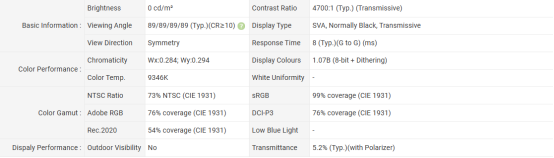

ST6451D04-9 is a 65 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.ST6451D04-9 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1438.48(W)×814.44(H)×1.3(D) mm, with surface treament of Antiglare (Haze 2.3%), Hard coating (2H), net weight of 3.20Kgs (Typ.), utilizing 0.40+0.50 mm mm plate. As a SVA, Normally Black, Transmissive CELL product, ST6451D04-9 can provides 4700:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (sRGB). This product have no backlight. It's typical vertical frame rate (Fv) is 60Hz.
