ST6451D05-3 65Inch 60Hz LCD Screen Replacement
CSOT ST6451D05-3 Application Details
CSOT ST6451D05-3 Optical Details
CSOT ST6451D05-3 Mechanical Details
CSOT ST6451D05-3 Electronics Details
CSOT ST6451D05-3 Backlight Details
CSOT ST6451D05-3 Interface Detail
CSOT ST6451D05-3 Package Details

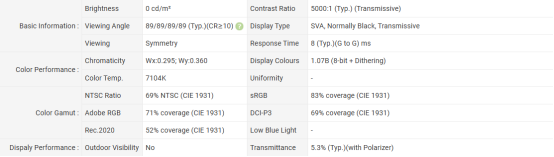

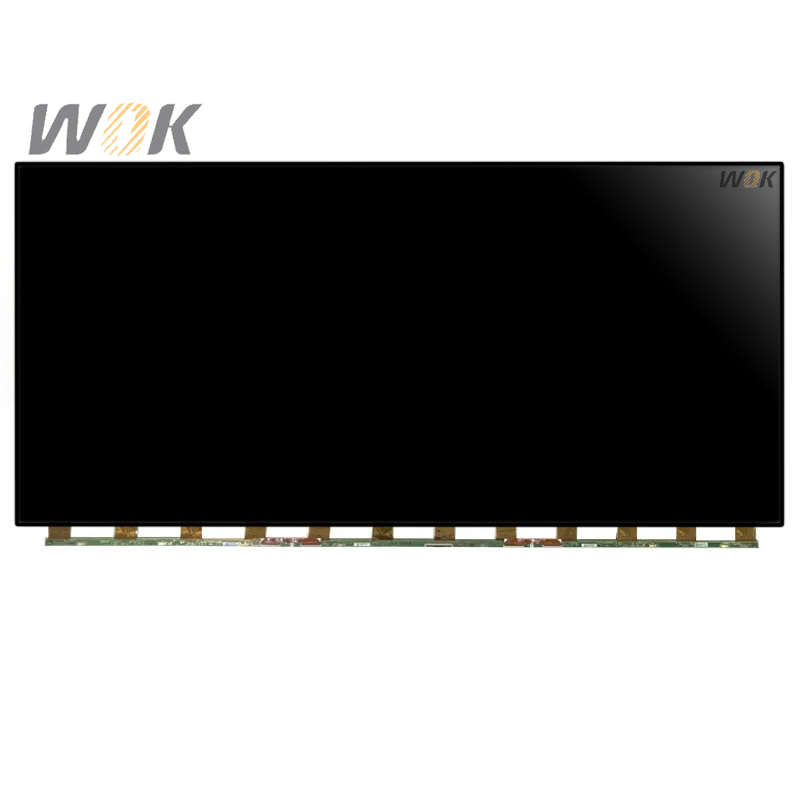

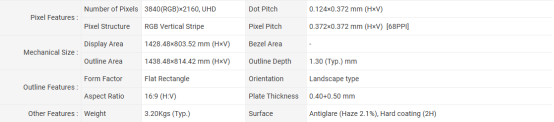

ST6451D05-3 is a 65 inch diagonal a-Si TFT-LCD display screen, without backlight, without touch screen.ST6451D05-3 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, outline size of 1438.48(W)×814.42(H)×1.3(D) mm, with surface treament of Antiglare (Haze 2.1%), Hard coating (2H), net weight of 3.20Kgs (Typ.), utilizing 0.40+0.50 mm mm plate. As a SVA, Normally Black, Transmissive CELL product, ST6451D05-3 can provides 5000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Dithering gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 69% (NTSC). This product have no backlight. ST6451D05-3 utilizes USI-T as it's signal inputting systerm, which connected by 136 pins Connector. It's typical vertical frame rate (Fv) is 60Hz.
