HV650QUB N9E

BOE Display HV650QUB-N9E 4K 65Inch LCD Panel Product Collection

BOE HV650QUB-N9E Application Features

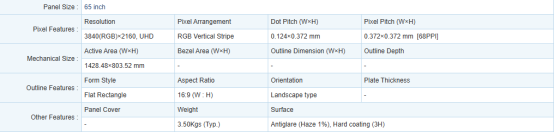

BOE HV650QUB-N9E Mechanical Features

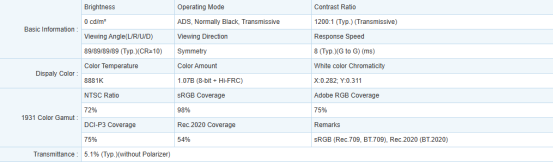

BOE HV650QUB-N9E Optical Features

BOE HV650QUB-N9E Electronics Features

BOE HV650QUB-N9E Interface Features

BOE HV650QUB-N9E Backlight Features

BOE HV650QUB-N9E Packing Features

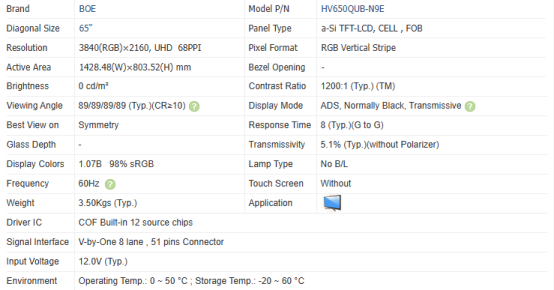

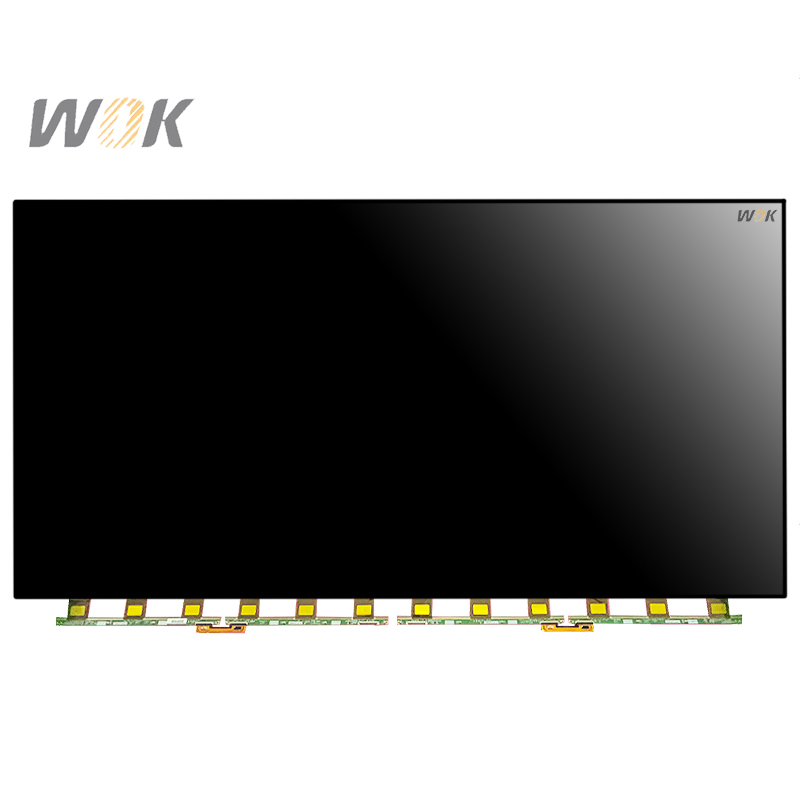

HV650QUB-N9E is a 65 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.HV650QUB-N9E supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 3.50Kgs (Typ.). As a ADS, Normally Black, Transmissive CELL product, HV650QUB-N9E can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (sRGB). This product have no backlight. HV650QUB-N9E utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
