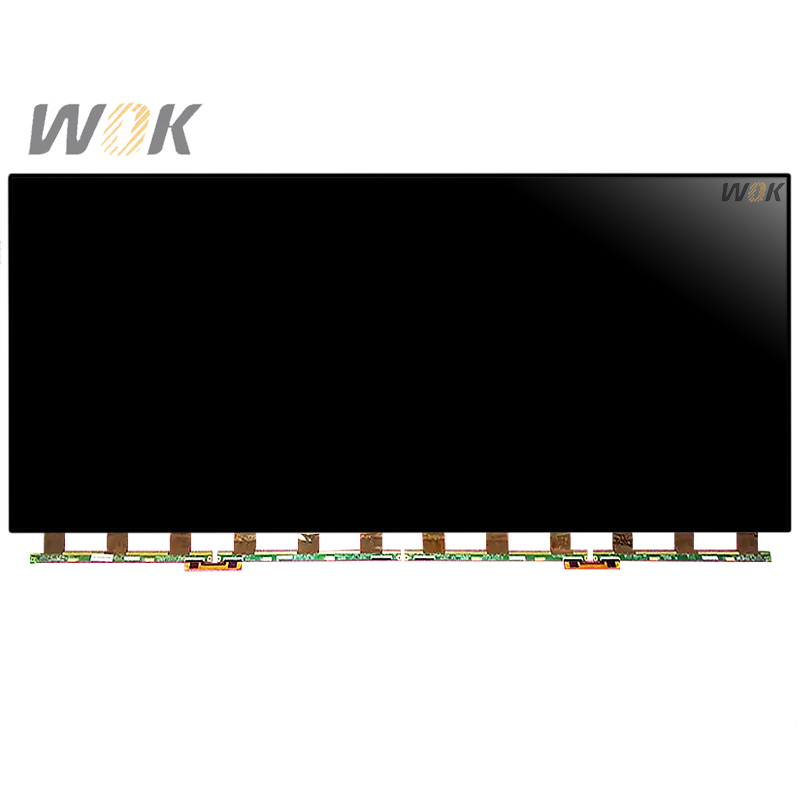

BOE HV650QUB-N9L 65Inch 4K 60Hz LCD Panel
BOE HV650QUB-N9L Application Details
BOE HV650QUB-N9L Mechanical Details
BOE HV650QUB-N9L Optical Details
BOE HV650QUB-N9L Electronics Details
BOE HV650QUB-N9L Interface Details
BOE HV650QUB-N9L Backlight Details

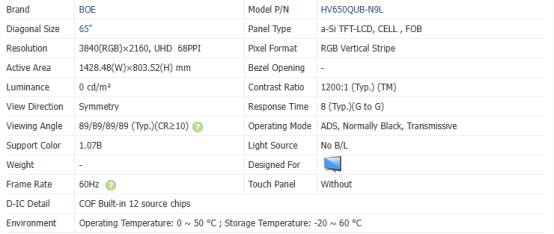

HV650QUB-N9L supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1428.48(W)×803.52(H) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H). As a ADS, Normally Black, Transmissive CELL product, HV650QUB-N9L can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors. This product have no backlight. It's typical vertical frame rate (Fv) is 60Hz.
