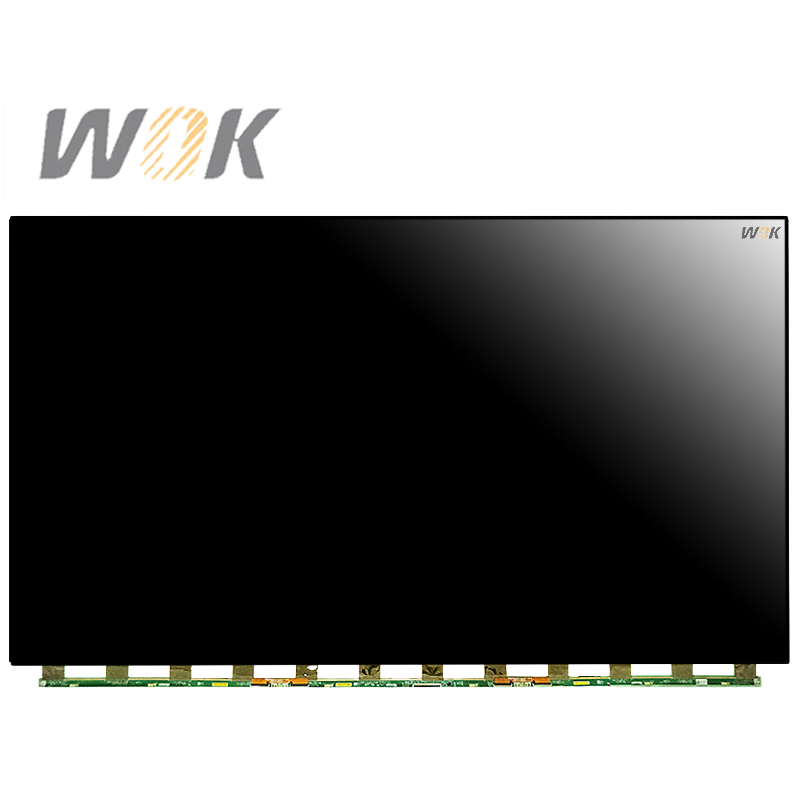

AUO 85Inch T850QVN03.4 CELL UHD LCD Panel Replacement
AUO T850QVN03.4 CELL Application Details
AUO T850QVN03.4 CELL Mechanical Details
AUO T850QVN03.4 CELL Optical Details
AUO T850QVN03.4 CELL Electronics Details
AUO T850QVN03.4 CELL Interface Details
AUO T850QVN03.4 CELL Lightting Details
AUO T850QVN03.4 CELL Packing Details

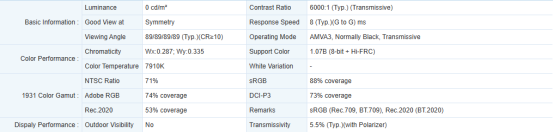

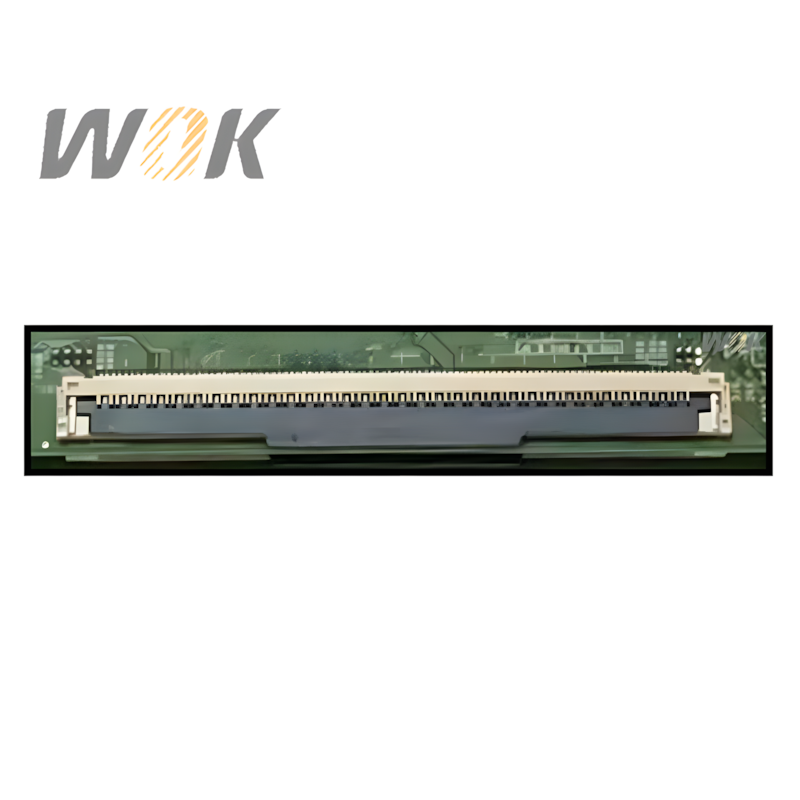

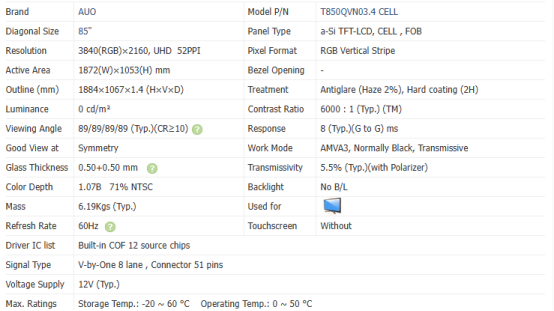

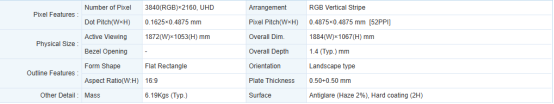

T850QVN03.4 CELL supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1872(W)×1053(H) mm, outline size of 1884(W)×1067(H)×1.4(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (2H), net weight of 6.19Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a AMVA3, Normally Black, Transmissive CELL product, T850QVN03.4 CELL can provides 6000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 71% (NTSC). This product have no backlight. T850QVN03.4 CELL utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
