T850QVN03.9

AUO T850QVN03.9 CELL 85Inch UHD LCD Modules Product Collection

AUO T850QVN03.9 CELL Application Features

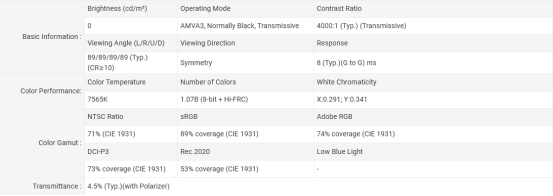

AUO T850QVN03.9 CELL Optical Features

AUO T850QVN03.9 CELL Mechanical Features

AUO T850QVN03.9 CELL Electronics Features

AUO T850QVN03.9 CELL Backlight Features

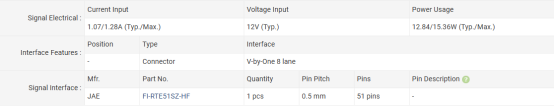

AUO T850QVN03.9 CELL Interface Features

AUO T850QVN03.9 CELL Packing Features

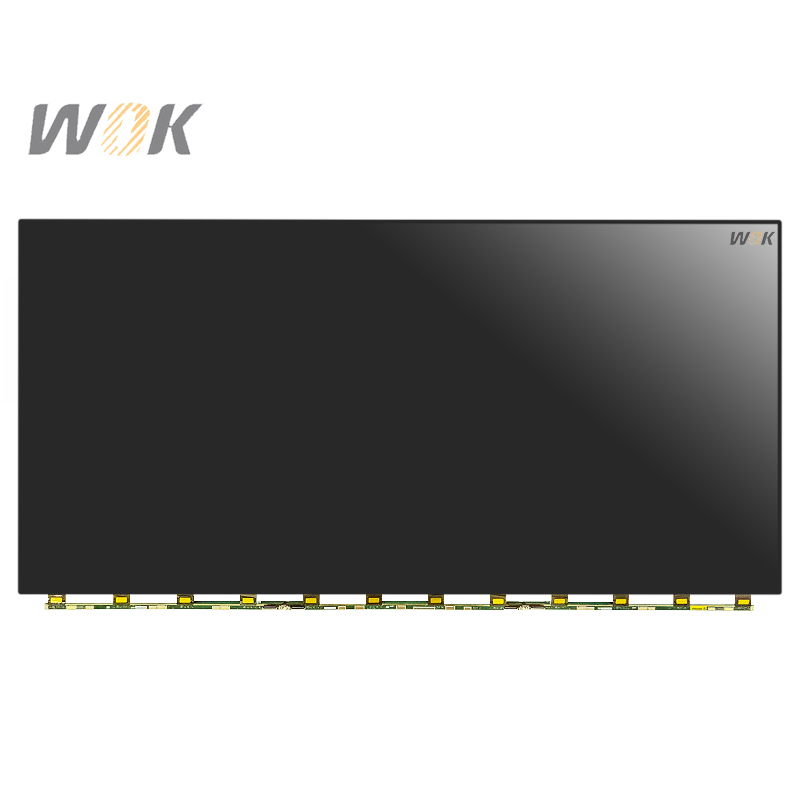

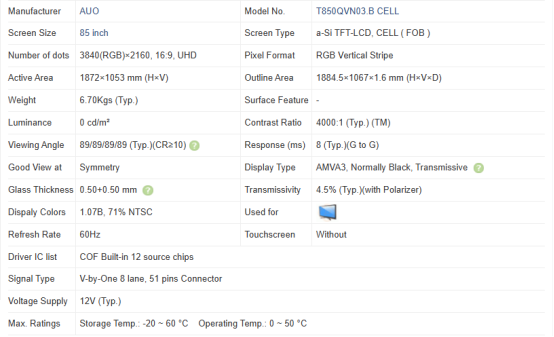

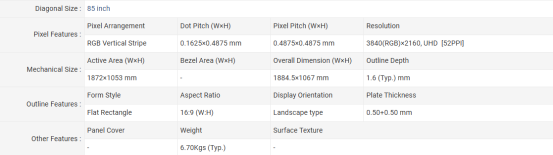

T850QVN03.9 CELL supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1872(W)×1053(H) mm, outline size of 1884.5(W)×1067(H)×1.6(D) mm, net weight of 6.70Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a AMVA3, Normally Black, Transmissive CELL product, T850QVN03.9 CELL can provides 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 71% (NTSC). This product have no backlight. T850QVN03.9 CELL utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
