T430QVN04.3

AUO T430QVN04.3 43inch 3840*2160 60Hz LCD Screen

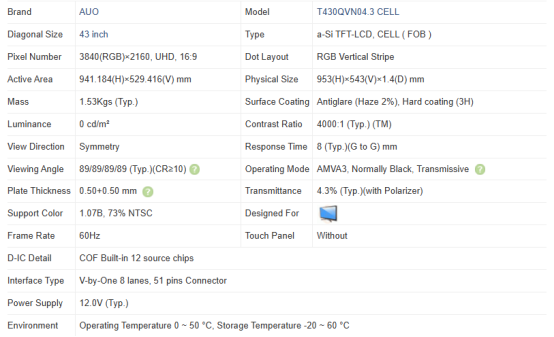

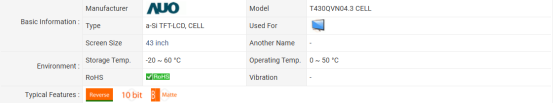

AUO T430QVN04.3 CELL Application Details

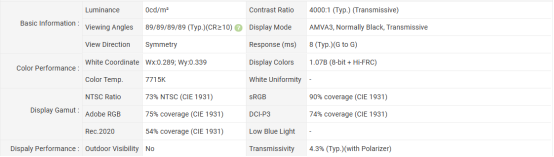

AUO T430QVN04.3 CELL Optical Details

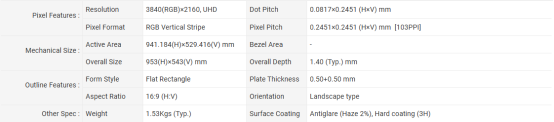

AUO T430QVN04.3 CELL Mechanical Details

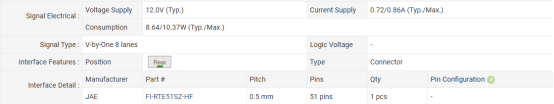

AUO T430QVN04.3 CELL Electronics Details

AUO T430QVN04.3 CELL Backlight Details

AUO T430QVN04.3 CELL Interface Details

AUO T430QVN04.3 CELL Package Details

T430QVN04.3 CELL is a 43 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.T430QVN04.3 CELL supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 941.184(W)×529.416(H) mm, outline size of 953(W)×543(H)×1.4(D) mm, with surface treament of Antiglare (Haze 2%), Hard coating (3H), net weight of 1.53Kgs (Typ.), utilizing 0.50+0.50 mm mm plate. As a AMVA3, Normally Black, Transmissive CELL product, T430QVN04.3 CELL can provides 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 73% (NTSC). This product have no backlight. T430QVN04.3 CELL utilizes V-by-One 8 lanes as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
