M270HVR01.0

27inch M270HVR01.0 165Hz 61 pins LCD Display Panel

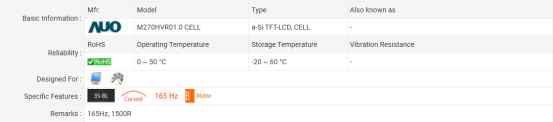

AUO M270HVR01.0 CELL Application Features

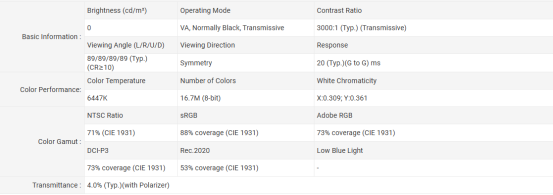

AUO M270HVR01.0 CELL Optical Features

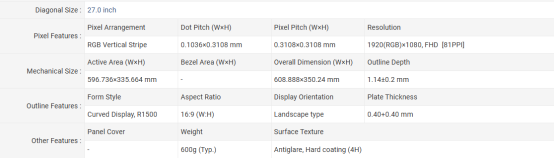

AUO M270HVR01.0 CELL Mechanical Features

AUO M270HVR01.0 CELL Electronics Features

AUO M270HVR01.0 CELL Backlight Features

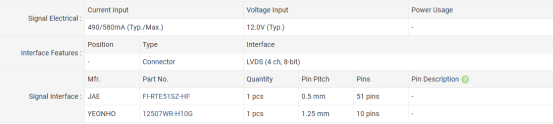

AUO M270HVR01.0 CELL Interface Features

AUO M270HVR01.0 CELL Packing Features

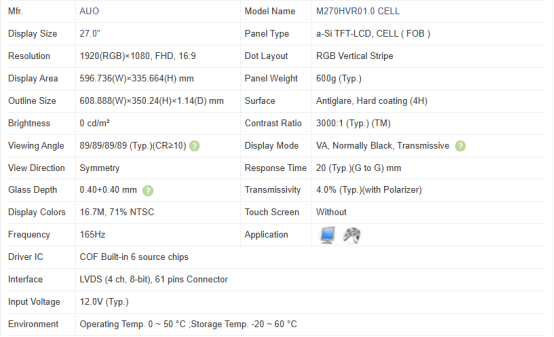

M270HVR01.0 CELL supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.888(W)×350.24(H)×1.14(D) mm, with surface treament of Antiglare, Hard coating (4H), net weight of 600g (Typ.), utilizing 0.40+0.40 mm mm plate. As a VA, Normally Black, Transmissive CELL product, M270HVR01.0 CELL can provides 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC). This product have no backlight. M270HVR01.0 CELL utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 61 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 165Hz.
